SKU: HK1816-MB

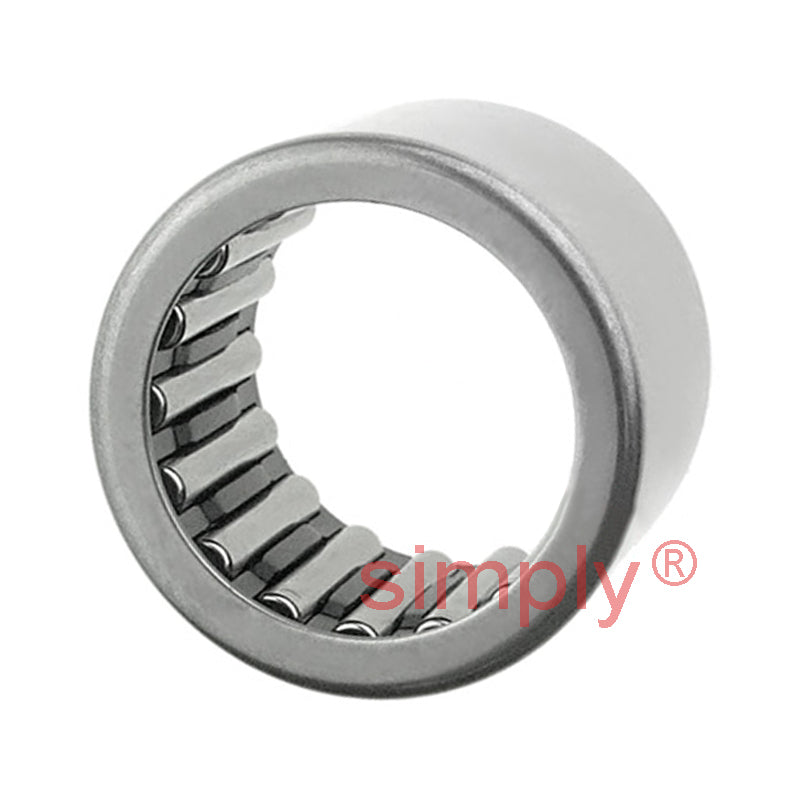

Major Brand HK1816 Drawn Cup Type Needle Roller Bearing with Two Open Ends 18x24x16mm
Major Brand HK1816 Drawn Cup Type Needle Roller Bearing with Two Open Ends 18x24x16mm
Regular price
€6,77
ex VAT
Regular price
Sale price
€6,77
ex VAT
Equivalent to: TLA1816Z RHNA182416
In stock
Price Break
10+
€5,15
19+
€4,86
29+
€4,80
39+
€4,75
49+
€4,69
74+
€4,63
99+
€4,34
199+
€4,28
249+
€4,22
499+
€4,17
999+
€4,05
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA1816Z RHNA182416
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 16mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 24mm |
| C | 16mm |
| Dynamic load | 11200 N |
| Static load | 17600 N |
| Fatigue load limit Pu | 2040 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| r1r2 min | 0.8mm |
| Da max | 19mm |
| ra max | 0.8mm |
| Inner ring | IR15x18x16.5 |
| Seal | G/SD18x24x3 |
| Weight | 18 g |
