SKU: HK2016F-NTN

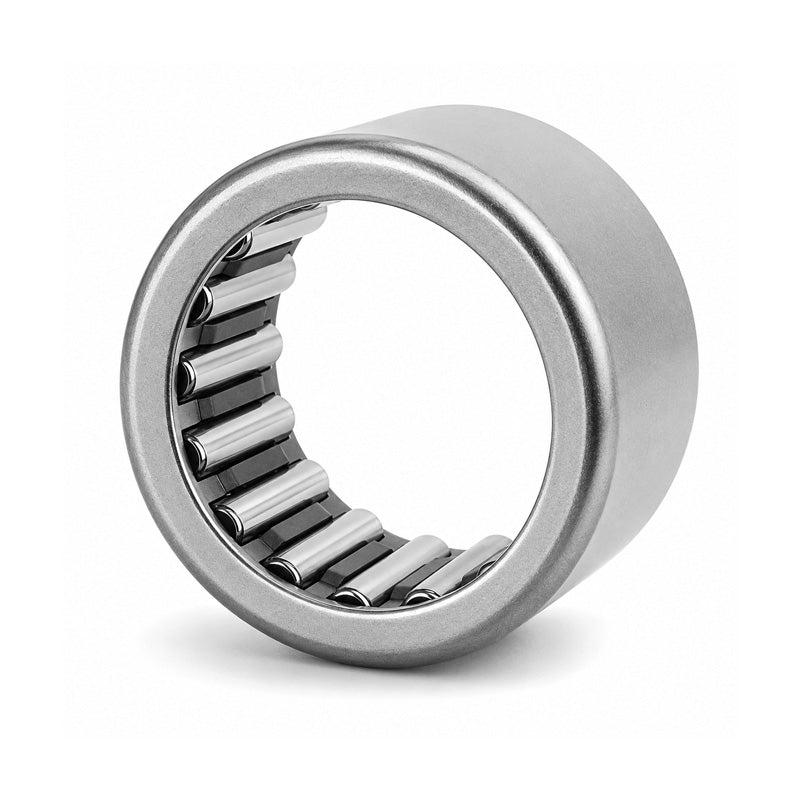

NTN HK2016F Drawn Cup Needle Roller Bearing with Open End 20x26x16mm
NTN HK2016F Drawn Cup Needle Roller Bearing with Open End 20x26x16mm
Regular price
€6,40
ex VAT
Regular price
Sale price
€6,40
ex VAT
In stock
Price Break
3+
€4,88
4+
€4,60
9+
€4,55
19+
€4,49
49+
€4,44
99+
€4,38
499+
€4,11
999+
€4,06
1999+
€4,00
2999+
€3,95
4999+
€3,84
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 16mm
Technical
Technical
| Fw - Inside diameter | 20mm |
|---|---|
| D - Outside diameter | 26mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR17X20X16.5 |
| Cr - Dynamic load rating | 12.5 kN |
| C0r - Static load rating | 19.1 kN |
| N - Grease lubrication limit speed | 8000 tr/min |
| N - Oil lubrication limit speed | 12000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
