SKU: HK2016LL/3AS-NTN

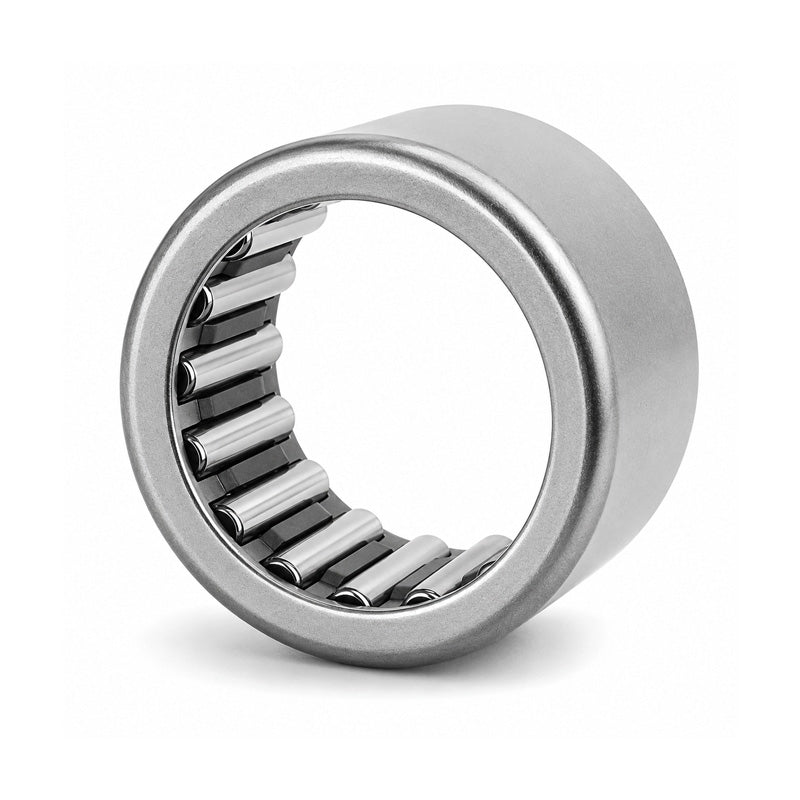

NTN HK2016LL/3AS Drawn Cup Needle Roller Bearing with Open End 20x26x16mm
NTN HK2016LL/3AS Drawn Cup Needle Roller Bearing with Open End 20x26x16mm
Regular price
€2,96
ex VAT
Regular price
Sale price
€2,96
ex VAT
In stock
Price Break
5+
€2,93
10+
€2,81
20+
€2,75
50+
€2,66
100+
€2,60
500+
€2,46
1000+
€2,07
Couldn't load pickup availability
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 16mm
Technical
Technical

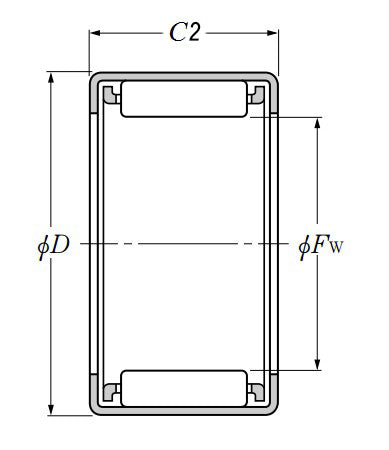

| Fw - Inside diameter | 20mm |
|---|---|
| D - Outside diameter | 26mm |
| C2 - Width of drawn cup LL | 16mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR15X20X18 |
| Cr - Dynamic load rating | 9.25 kN |
| C0r - Static load rating | 13 kN |
| N - Grease lubrication limit speed | 8000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
