SKU: HK2030-EU

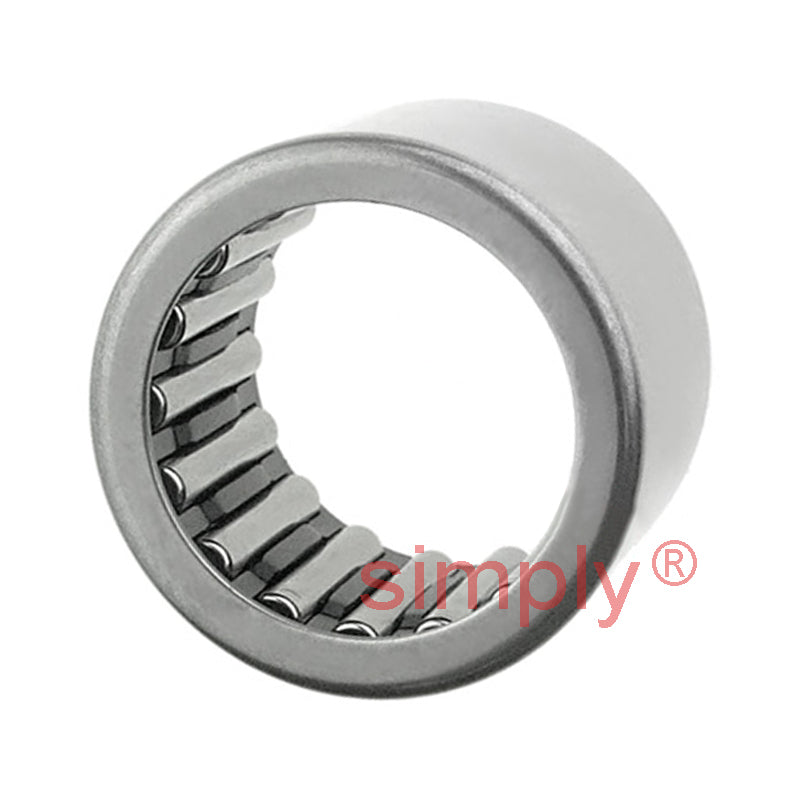

HK2030 Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x30mm
HK2030 Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x30mm
Regular price
€7,84
ex VAT
Regular price
Sale price
€7,84
ex VAT
Equivalent to: TLA2030Z RHNA202630
In stock
Price Break
10+
€5,97
19+
€5,63
29+
€5,57
39+
€5,50
49+
€5,43
74+
€5,37
99+
€5,03
199+
€4,96
249+
€4,90
499+
€4,83
999+
€4,70
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA2030Z RHNA202630
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 30mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 26mm |
| C | 30mm |
| Dynamic load C | 20900 N |
| Static load Co | 40500 N |
| Fatigue load limit Pu | 4750 N |
| Speed in grease | 9000 rpm |
| Speed in oil | 14000 rpm |
| r1r2 min | 0.8mm |
| Da max | 20.8mm |
| ra max | 0.8mm |
| Inner ring | IR17x20x30.5 |
| Seal | G/SD26x34x4 |
| Weight | 35 g |
