SKU: HK2216.2RS-EU

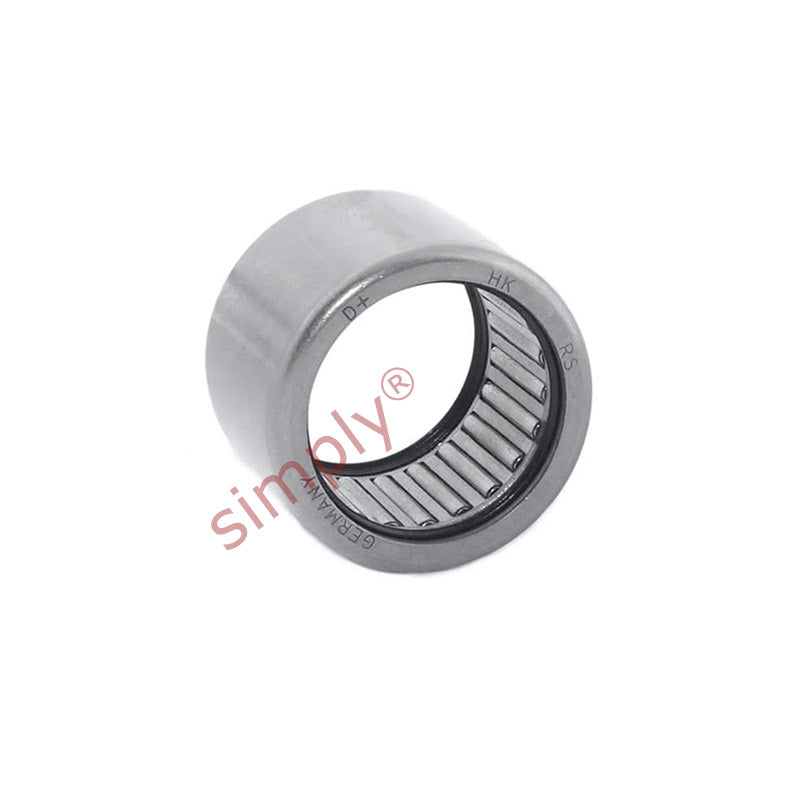

HK22162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x16mm
HK22162RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x16mm
Regular price
€8,31
ex VAT
Regular price
Sale price
€8,31
ex VAT
In stock
Price Break
10+
€6,33
19+
€5,98
29+
€5,91
39+
€5,83
49+
€5,76
74+
€5,69
99+
€5,34
199+
€5,26
249+
€5,19
499+
€5,12
999+
€4,98
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 16mm |
| Dynamic load C | 8800 N |
| Static load Co | 13700 N |
| Fatigue load limit Pu | 1560 N |
| Speed in grease | 8000 rpm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x23 |
| Weight | 18 g |
