SKU: HK2220.2RS-EU

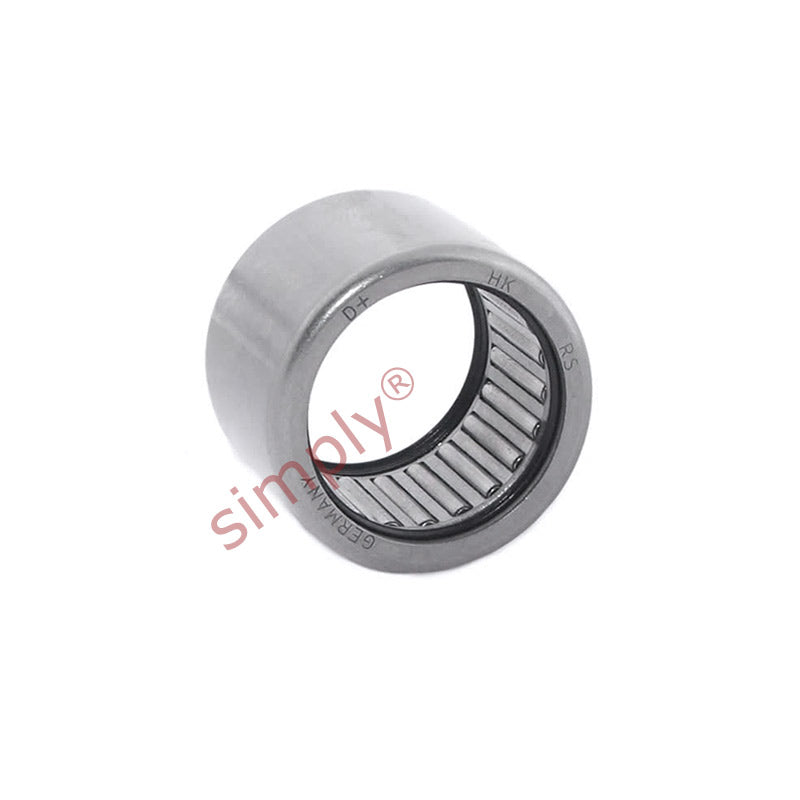

HK22202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x20mm
HK22202RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 22x28x20mm
Regular price
€9,38
ex VAT
Regular price
Sale price
€9,38
ex VAT
In stock
Price Break
10+
€7,15
19+
€6,75
29+
€6,67
39+
€6,59
49+
€6,51
74+
€6,43
99+
€6,03
199+
€5,94
249+
€5,86
499+
€5,78
999+
€5,62
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22mm
- Outside Diameter:
- 28mm
- Width:
- 20mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 22mm |
|---|---|
| D | 28mm |
| C | 20mm |
| Dynamic load C | 13000 N |
| Static load Co | 22400 N |
| Fatigue load limit Pu | 2600 N |
| Speed in grease | 8000 rpm |
| r1r2 min | 0.8mm |
| Da max | 23mm |
| ra max | 0.8mm |
| Inner ring | IR17x22x23 |
| Weight | 26 g |
