SKU: HK2816F-NTN

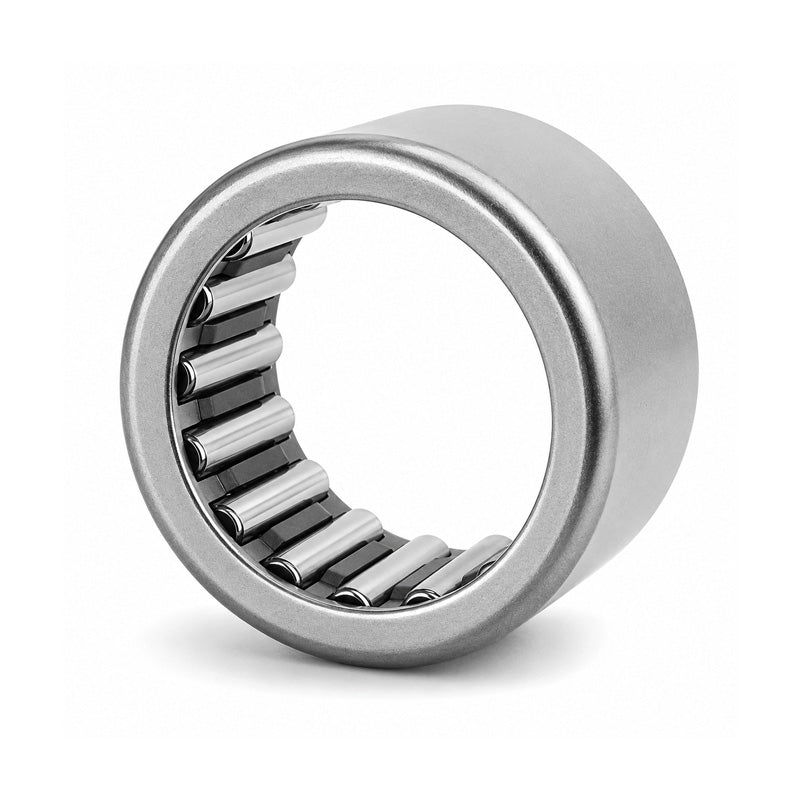

NTN HK2816F Drawn Cup Needle Roller Bearing with Open End 28x35x16mm
NTN HK2816F Drawn Cup Needle Roller Bearing with Open End 28x35x16mm
Regular price
€7,00
ex VAT
Regular price
Sale price
€7,00
ex VAT
In stock
Price Break
3+
€5,33
4+
€5,03
9+
€4,97
19+
€4,91
49+
€4,85
99+
€4,79
499+
€4,49
999+
€4,43
1999+
€4,37
2999+
€4,31
4999+
€4,19
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 35mm
- Width:
- 16mm
Technical
Technical
| Fw - Inside diameter | 28mm |
|---|---|
| D - Outside diameter | 35mm |
| C - Width of bearing, drawn cup or outer ring | 16mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR22X28X17 |
| Cr - Dynamic load rating | 16.7 kN |
| C0r - Static load rating | 26.4 kN |
| N - Grease lubrication limit speed | 5500 tr/min |
| N - Oil lubrication limit speed | 8500 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
