SKU: HK3520D-NTN

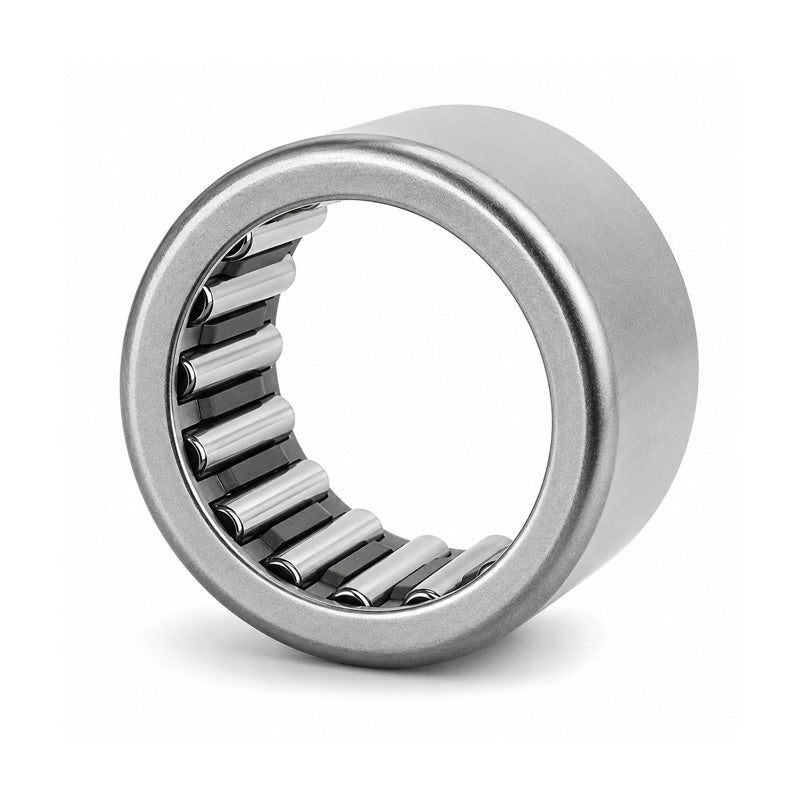

NTN HK3520D Drawn Cup Needle Roller Bearing with Open End 35x42x20mm - Allow 2-3 Days
NTN HK3520D Drawn Cup Needle Roller Bearing with Open End 35x42x20mm - Allow 2-3 Days
Regular price
€11,63
ex VAT
Regular price
Sale price
€11,63
ex VAT
In stock
Price Break
3+
€9,85
4+
€9,45
9+
€9,25
19+
€8,96
49+
€8,76
99+
€8,26
499+
€6,97
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| Fw - Inside diameter | 35mm |
|---|---|
| D - Outside diameter | 42mm |
| C - Width of bearing, drawn cup or outer ring | 20mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 3mm |
| Cr - Dynamic load rating | 24.8 kN |
| C0r - Static load rating | 47.5 kN |
| N - Grease lubrication limit speed | 4700 tr/min |
| N - Oil lubrication limit speed | 7000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
