SKU: HK4012-NTN

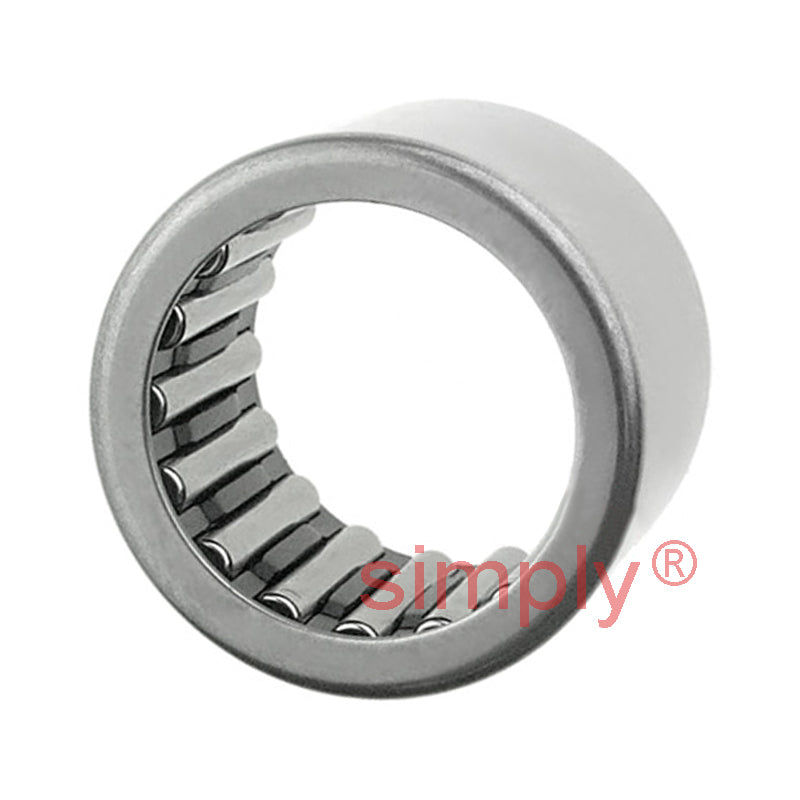

NTN HK4012 Drawn Cup Needle Roller Bearing with Open End 40x47x12mm
NTN HK4012 Drawn Cup Needle Roller Bearing with Open End 40x47x12mm
Regular price
€7,75
ex VAT
Regular price
Sale price
€7,75
ex VAT
In stock
Price Break
3+
€5,90
4+
€5,57
9+
€5,50
19+
€5,44
49+
€5,37
99+
€5,30
499+
€4,97
999+
€4,91
1999+
€4,84
2999+
€4,77
4999+
€4,64
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 47mm
- Width:
- 12mm
Technical
Technical
| Fw - Inside diameter | 40mm |
|---|---|
| D - Outside diameter | 47mm |
| C - Width of bearing, drawn cup or outer ring | 12mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR35X40X12.5 |
| Cr - Dynamic load rating | 15.1 kN |
| C0r - Static load rating | 26 kN |
| N - Grease lubrication limit speed | 4000 tr/min |
| N - Oil lubrication limit speed | 6000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
