SKU: HK5022L/3AS-NTN

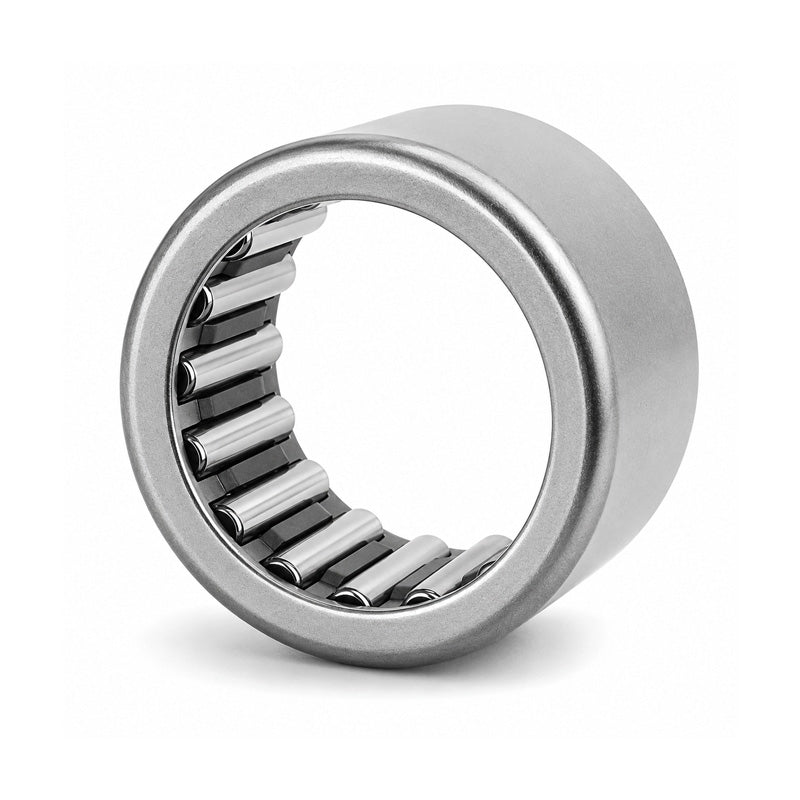

NTN HK5022L/3AS Drawn Cup Needle Roller Bearing with Open End 50x58x22mm - Allow 2-3 Days

NTN HK5022L/3AS Drawn Cup Needle Roller Bearing with Open End 50x58x22mm - Allow 2-3 Days
Regular price €11,64 ex VAT
Regular price Sale price €11,64 ex VAT
Sale Sold out

In stock

Price Break
3+ €9,86
4+ €9,46
9+ €9,26
19+ €8,96
49+ €8,76
99+ €8,27
499+ €6,97
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Inside diameter 50mm
D - Outside diameter 58mm
C1 - Width of Drawn cup L 22mm
C3 - Max drawn cup closed end thickness LL 2.7mm
Lubrication hole on outer ring? No
Inner ring reference IR45X50X25
Cr - Dynamic load rating 31.5 kN
C0r - Static load rating 63 kN
N - Grease lubrication limit speed 3200 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
