SKU: HK5024LLD/3AS-NTN

NTN HK5024LLD/3AS Drawn Cup Needle Roller Bearing with Open End 50x58x24mm - Allow 2-3 Days

NTN HK5024LLD/3AS Drawn Cup Needle Roller Bearing with Open End 50x58x24mm - Allow 2-3 Days
Regular price €12,92 ex VAT
Regular price Sale price €12,92 ex VAT
Sale Sold out

In stock

Price Break
3+ €10,95
4+ €10,51
9+ €10,29
19+ €9,95
49+ €9,73
99+ €9,18
499+ €7,74
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

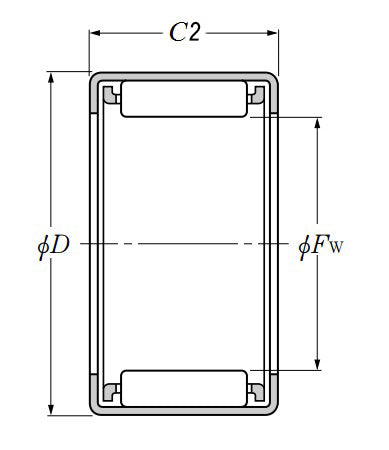

Fw - Inside diameter 50mm
D - Outside diameter 58mm
C2 - Width of drawn cup LL 24mm
C3 - Max drawn cup closed end thickness LL 2.7mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Inner ring reference IR45X50X25.5
Cr - Dynamic load rating 31.5 kN
C0r - Static load rating 63 kN
N - Grease lubrication limit speed 3200 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
