SKU: HMV-21-EBF-HN-SNR

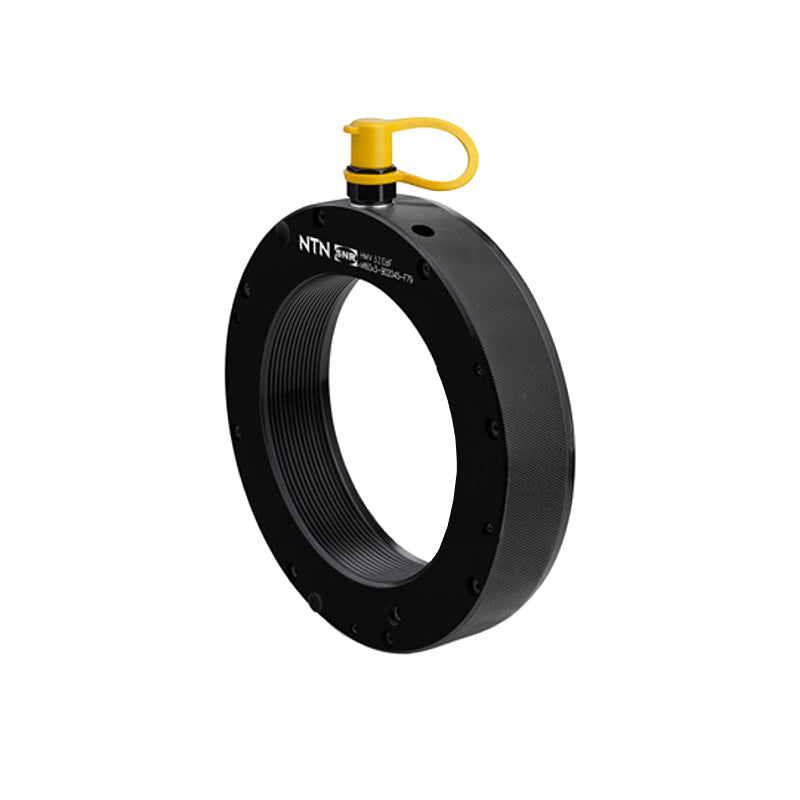

SNR HMV21 Metric Hydraulic Nut with M105x2 Thread - Allow 2-3 Days
SNR HMV21 Metric Hydraulic Nut with M105x2 Thread - Allow 2-3 Days
Regular price
€1.321,68
ex VAT
Regular price
Sale price
€1.321,68
ex VAT
Allow 2-3 Days
In stock
Price Break
10+
€1.176,30
19+
€1.110,21
29+
€1.096,99
39+
€1.083,78
49+
€1.070,56
74+
€1.057,34
99+
€991,26
199+
€978,04
249+
€964,83
499+
€951,61
999+
€925,18
Couldn't load pickup availability
Share this product
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- M105x2
- Inside Diameter:
- 105.5mm
- Outside Diameter:
- 172mm
- Width:
- 44mm
- Flange Width:
- 6mm
Technical
Technical
| HMV | HMV21 |
|---|---|
| Thread G | M105x2 |
| Outside Diameter D | 172mm |
| Total Width B | 44mm |
| Piston Diameter max. d2 | 168mm |
| Permitted Piston Stroke | 5mm |
| Flange Width B1 | 6mm |
| Body Width B2 | 38mm |
| Diameter d1 | 105.5mm |
| Piston Surface Area | 5200mm2 |
| Weight | 4.9kg |
