SKU: HMV-48-EBF-HN-SNR

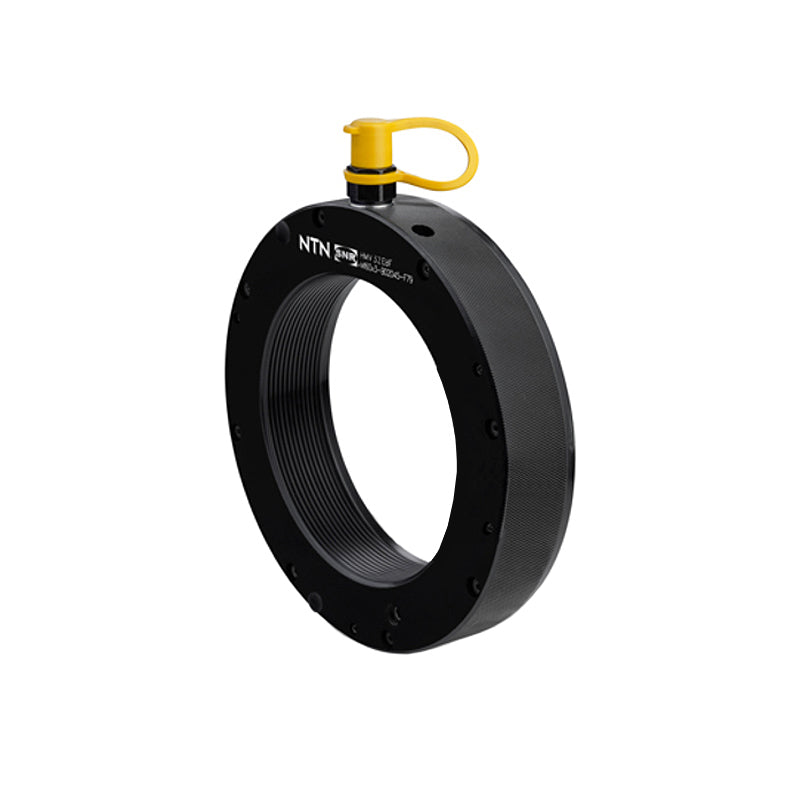

SNR HMV48 Metric Hydraulic Nut with Tr240x4 Thread - Allow 2-3 Days
SNR HMV48 Metric Hydraulic Nut with Tr240x4 Thread - Allow 2-3 Days
Regular price
€2.826,61
ex VAT
Regular price
Sale price
€2.826,61
ex VAT
In stock
Price Break
10+
€2.515,68
19+
€2.374,35
29+
€2.346,09
39+
€2.317,82
49+
€2.289,55
74+
€2.261,29
99+
€2.119,96
199+
€2.091,69
249+
€2.063,43
499+
€2.035,16
999+
€1.978,63
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr240x4
- Inside Diameter:
- 242mm
- Outside Diameter:
- 330mm
- Width:
- 55mm
- Flange Width:
- 9mm
Technical
Technical
| HMV | HMV48 |
|---|---|
| Thread G | Tr240x4 |
| Outside Diameter D | 330mm |
| Total Width B | 55mm |
| Piston Diameter max. d2 | 326mm |
| Permitted Piston Stroke | 10mm |
| Flange Width B1 | 9mm |
| Body Width B2 | 46mm |
| Diameter d1 | 242mm |
| Piston Surface Area | 17250mm2 |
| Weight | 16.2kg |
