SKU: HMV-52-EBF-HN-SNR

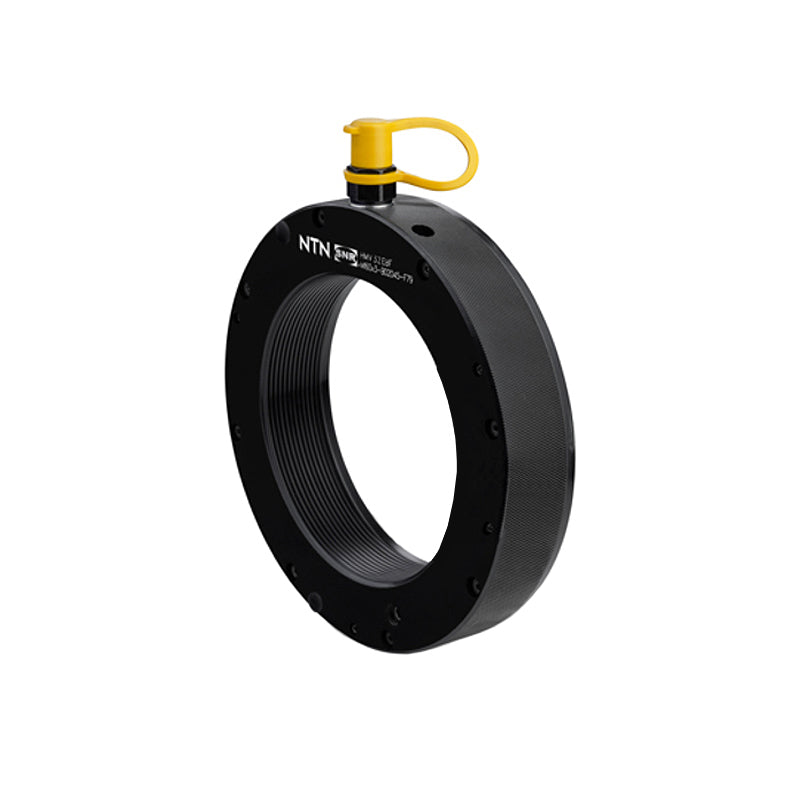

SNR HMV52 Metric Hydraulic Nut with Tr260x4 Thread - Allow 2-3 Days
SNR HMV52 Metric Hydraulic Nut with Tr260x4 Thread - Allow 2-3 Days
Regular price
€2.964,55
ex VAT
Regular price
Sale price
€2.964,55
ex VAT
In stock
Price Break
10+
€2.638,45
19+
€2.490,22
29+
€2.460,58
39+
€2.430,93
49+
€2.401,29
74+
€2.371,64
99+
€2.223,41
199+
€2.193,77
249+
€2.164,12
499+
€2.134,48
999+
€2.075,19
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr260x4
- Inside Diameter:
- 262mm
- Outside Diameter:
- 356mm
- Width:
- 56mm
- Flange Width:
- 9mm
Technical
Technical
| HMV | HMV52 |
|---|---|
| Thread G | Tr260x4 |
| Outside Diameter D | 356mm |
| Total Width B | 56mm |
| Piston Diameter max. d2 | 352mm |
| Permitted Piston Stroke | 11mm |
| Flange Width B1 | 9mm |
| Body Width B2 | 47mm |
| Diameter d1 | 262mm |
| Piston Surface Area | 19150mm2 |
| Weight | 19.2kg |
