SKU: HMV-96-EBF-HN-SNR

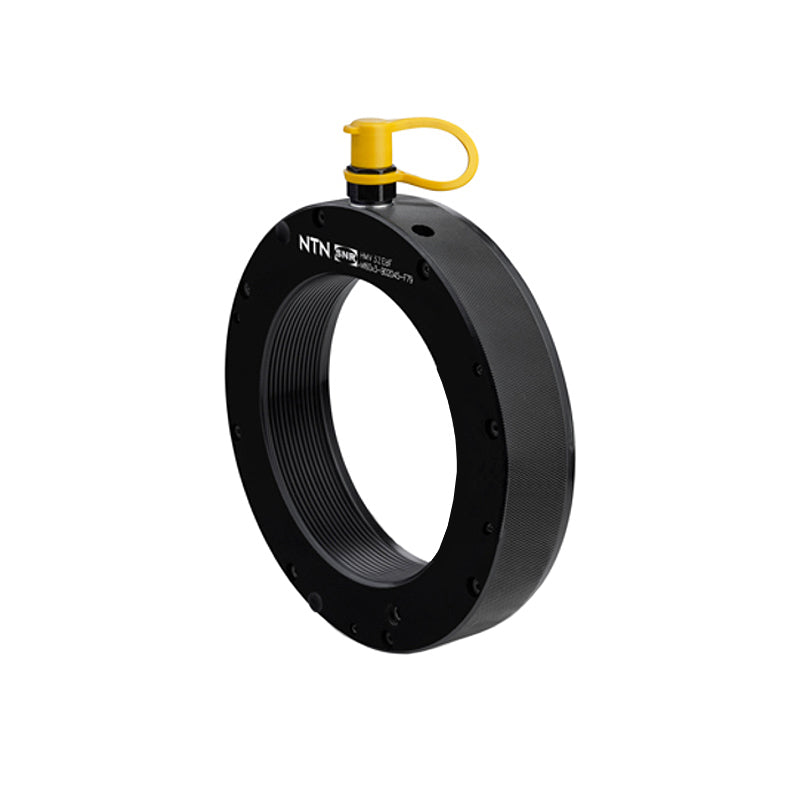

SNR HMV96 Metric Hydraulic Nut with Tr480x5 Thread - Allow 2-3 Days
SNR HMV96 Metric Hydraulic Nut with Tr480x5 Thread - Allow 2-3 Days
Regular price
€8.773,20
ex VAT
Regular price
Sale price
€8.773,20
ex VAT
In stock
Price Break
2+
€8.334,54
5+
€7.895,88
10+
€7.457,22
15+
€7.018,56
20+
€6.843,10
30+
€6.667,63
50+
€5.790,31
Couldn't load pickup availability
Description
Description
SNR Hydraulic Nuts: These hydraulic nuts are an essential tool for easily mounting and dismounting spherical bearings that feature a tapered bore. These nuts provide reliable and accurate adjustment of the bearing's radial clearance. Also, these cost-effective nuts help to reduce downtime by being safe, easy to use and easy to install.
Benefits: Easy to use, Reduce downtime, Provide easy mounting and dismounting.
- Brand / Quality:
- SNR - High Quality
- Thread Size:
- Tr480x5
- Inside Diameter:
- 482mm
- Outside Diameter:
- 612mm
- Width:
- 77mm
- Flange Width:
- 12mm
Technical
Technical
| HMV | HMV96 |
|---|---|
| Thread G | Tr480x5 |
| Outside Diameter D | 612mm |
| Total Width B | 77mm |
| Piston Diameter max. d2 | 608mm |
| Permitted Piston Stroke | 19mm |
| Flange Width B1 | 12mm |
| Body Width B2 | 65mm |
| Diameter d1 | 482mm |
| Piston Surface Area | 48600mm2 |
| Weight | 63.2kg |
