SKU: HMV28E-SKF

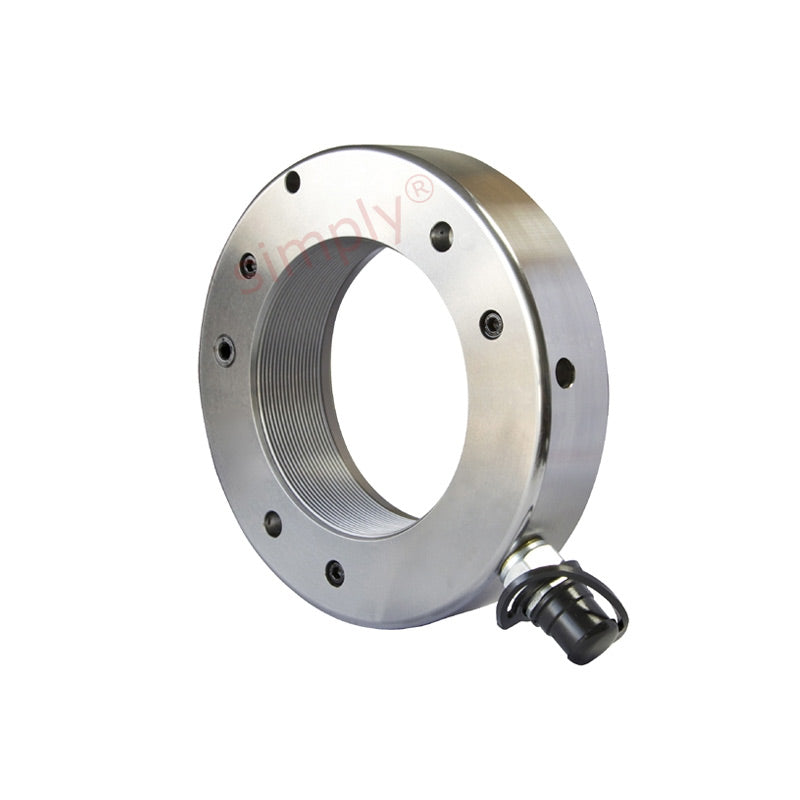

SKF HMV28E Metric Hydraulic Nut M140x2 Thread
SKF HMV28E Metric Hydraulic Nut M140x2 Thread
Regular price
€1.455,22
ex VAT
Regular price
Sale price
€1.455,22
ex VAT
In stock
Price Break
10+
€1.295,15
19+
€1.222,38
29+
€1.207,83
39+
€1.193,28
49+
€1.178,73
74+
€1.164,18
99+
€1.091,42
199+
€1.076,86
249+
€1.062,31
499+
€1.047,76
999+
€1.018,65
Couldn't load pickup availability
Description
Description
|
SKF HMV..E Series Hydraulic Nut: Mounting bearings on tapered seatings can be a difficult and time-consuming job. Using an SKF Hydraulic Nut facilitates easy and quick application of the high drive-up forces required for mounting bearings. Dismounting bearings mounted on either adapter or withdrawal sleeves is also often a difficult and time-consuming job. These problems can be reduced with the use of an SKF Hydraulic Nut. Oil is pumped into the nut and the piston is pushed out with a force, which is sufficient to free the sleeve. Benefits: Quick connection coupling can be fitted on the face or side of the nut, allowing the nut to be used in areas where space is limited. Note: A spare set of piston seals and maintenance kit is supplied as standard. |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| G Thread | M140x2 |
|---|---|
| d1 | 140.5 |
| d2 | 200mm |
| d3 | 208mm |
| B | 38mm |
| B1 | 7mm |
| Permitted piston displacement | 5mm |
| Piston area | 6800mm2 |
