SKU: HP12-3M-09F

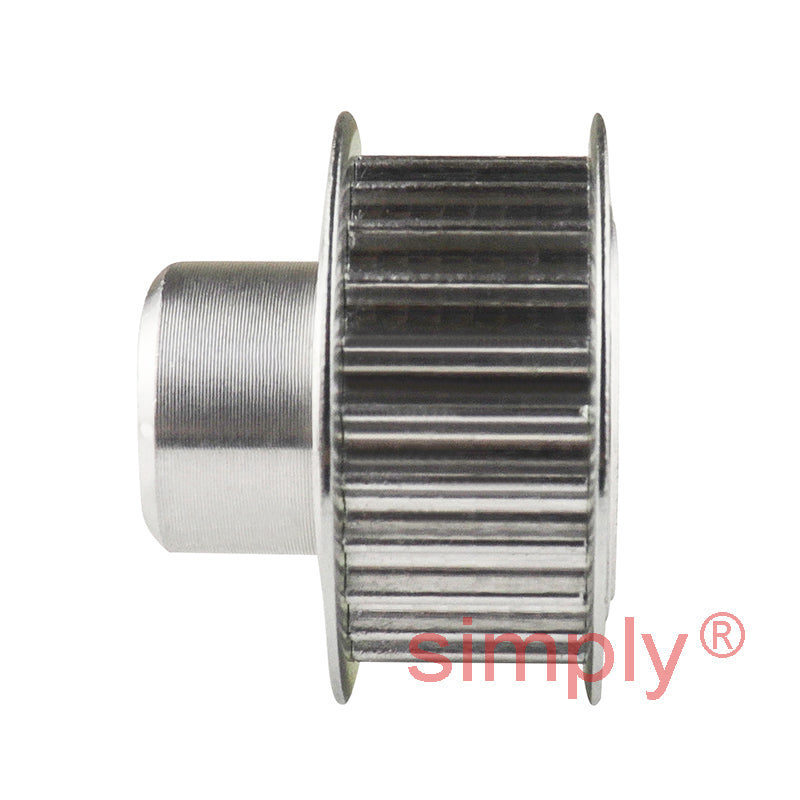

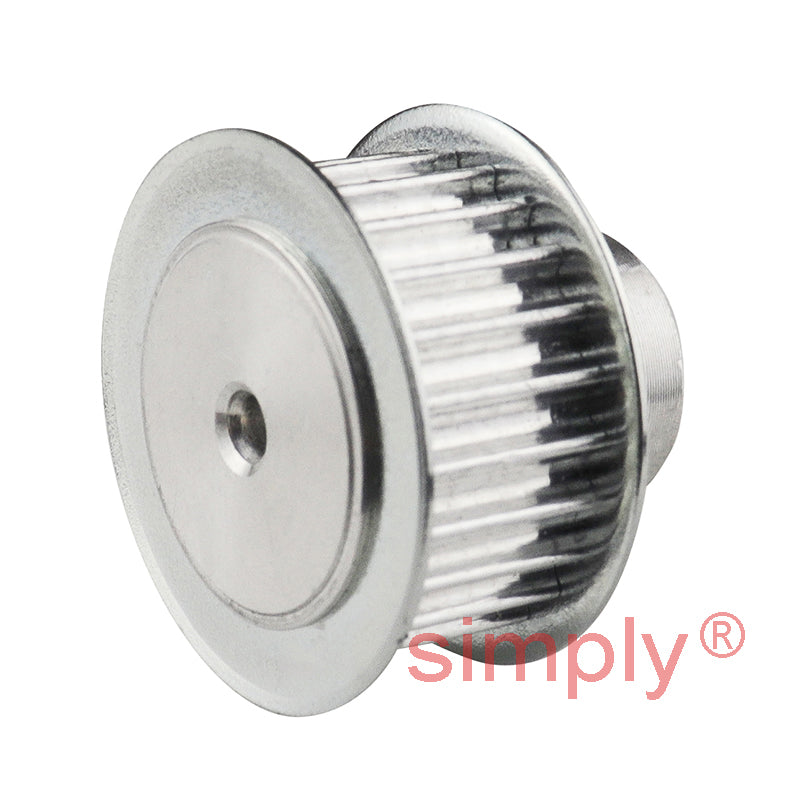

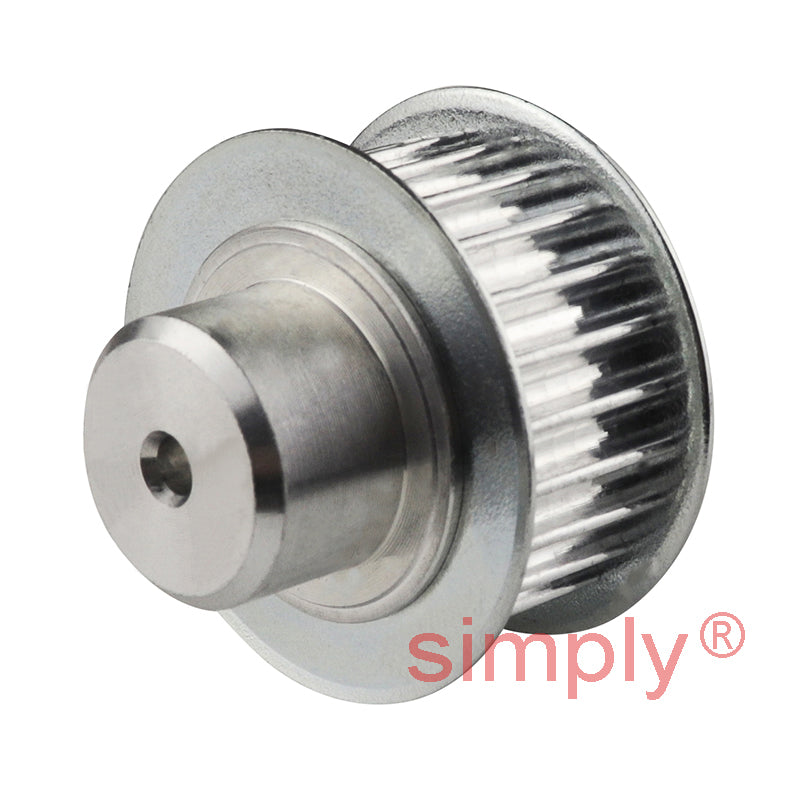

P12-3M-09F - 3mm Pitch 12 Tooth Flanged HTD Type Aluminium Timing Pulley for 9mm Wide Belts
P12-3M-09F - 3mm Pitch 12 Tooth Flanged HTD Type Aluminium Timing Pulley for 9mm Wide Belts
Regular price
€10,50
ex VAT
Regular price
Sale price
€10,50
ex VAT
Equivalent to: 123M09F
In stock
Price Break
10+
€9,35
19+
€8,82
29+
€8,72
39+
€8,61
49+
€8,51
74+
€8,40
99+
€7,88
199+
€7,77
249+
€7,67
499+
€7,56
999+
€7,35
Couldn't load pickup availability
Description
Description
HTD Un-Bored Pilot Bore Timing Pulley: These High Torque Drive (HTD) timing pulleys feature a pilot hole to ease in the creation of your own bore size; ideal for bespoke applications and unusual sized shafts. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and a number of teeth along with standard widths.
Equivalent: 123M09F
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 12
- Pitch:
- 3mm
- Item Type:
- Pilot Bore Pulley
- Maximum Belt Width:
- 9mm
Technical
Technical
| --- | Pulley Dimensions |
|---|---|
| Pitch | 3mm |
| Number of Teeth | 12 |
| Type | 0F Unbored |
| Dp | 11.46mm |
| De | 10.7mm |
| Df | 15mm |
| Dm | 15mm |
| F | 10.2mm |
| L | 17.5mm |
| Weight | 0.01kg |
