SKU: HS315-EU

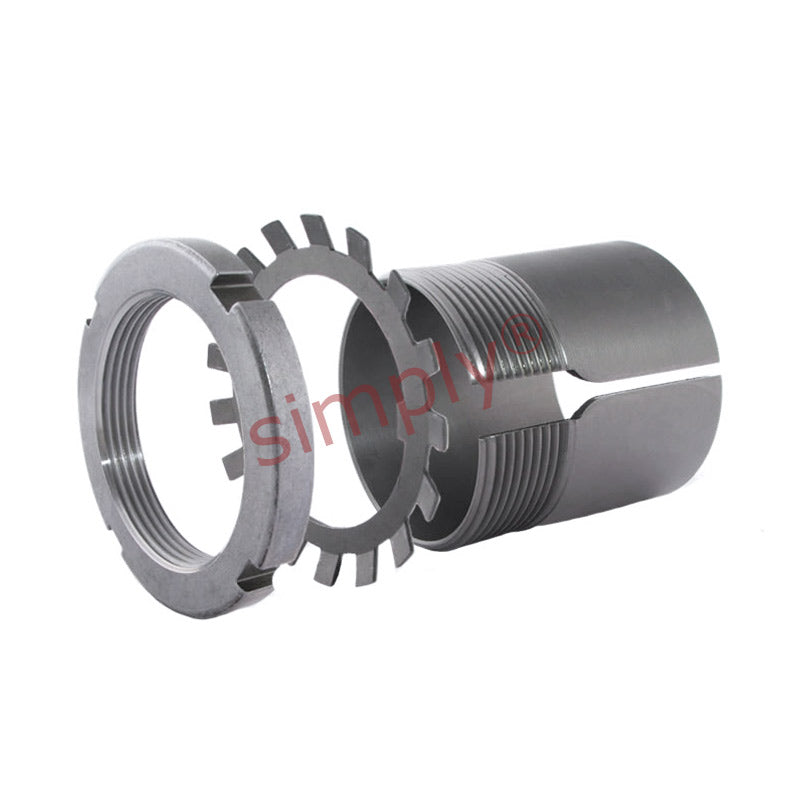

HS315 Budget Imperial Adaptor Sleeve for 2-5/8 inch Shaft
HS315 Budget Imperial Adaptor Sleeve for 2-5/8 inch Shaft
Regular price
€72,64
ex VAT
Regular price
Sale price
€72,64
ex VAT
In stock
Price Break
10+
€55,32
19+
€52,21
29+
€51,59
39+
€50,97
49+
€50,35
74+
€49,73
99+
€46,62
199+
€46,00
249+
€45,38
499+
€44,75
999+
€43,51
Share this product
Description
Description
|
Adaptor Sleeves for imperial shafts: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 66.68mm = 2.625 (2-5/8) inch
- Outside Diameter:
- 98mm
- Width:
- 55mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 66.675mm (2-5/8) inch |
| d | 75mm |
| d3 | 98mm |
| B1 | 55mm |
| B2 | 14.5mm |
| G | Thread 75x2mm |
| Weight | 0.71 kg |
| --- | Assembly Parts |
| Sleeve | HS315 |
| Nut | KM15 |
| Washer | MB15 |
| Hydraulic nut | HMV15E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2215K+taper>2215K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1315K+taper>1315K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22215K+taper>22215K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21315K+taper>21315K</a> |
