SKU: IRB.1816

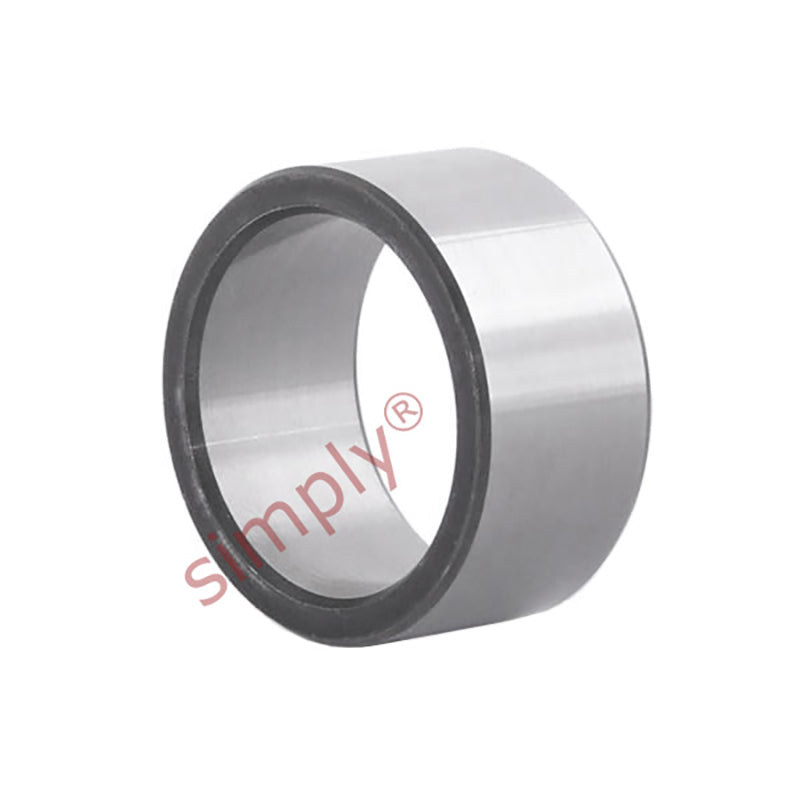

IRB1816 Imperial Inner Race 1-1/8x1-3/8x25.65

Name: IRB1816 Imperial Inner Race 1-1/8x1-3/8x25.65
Brand: IKO
SKU: IRB.1816
Price: 9.12 EUR
Availability: InStock

€9,12 ex VAT

Sale Sold out

In stock

Price Break

10+ €6,94

20+ €6,55

30+ €6,47

40+ €6,40

50+ €6,32

75+ €6,24

100+ €5,85

200+ €5,77

250+ €5,69

500+ €5,62

1000+ €5,46

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Inner Rings: Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a small lead in either side of the sleeve is provided.
Benefits: Hardened and ground, precision accurate component, lead in for easier assembly.

Brand / Quality:: IKO - High Quality
Inside Diameter:: 28.58mm = 1.125 (1-1/8) inch
Outside Diameter:: 34.93mm = 1.375 (1-3/8) inch
Width:: 25.65mm

Technical

d	1-1/8 inch
F	1-3/8 inch
B	25.65mm
Weight	0.0625kg

Reviews

View full details
