SKU: IRB.2424

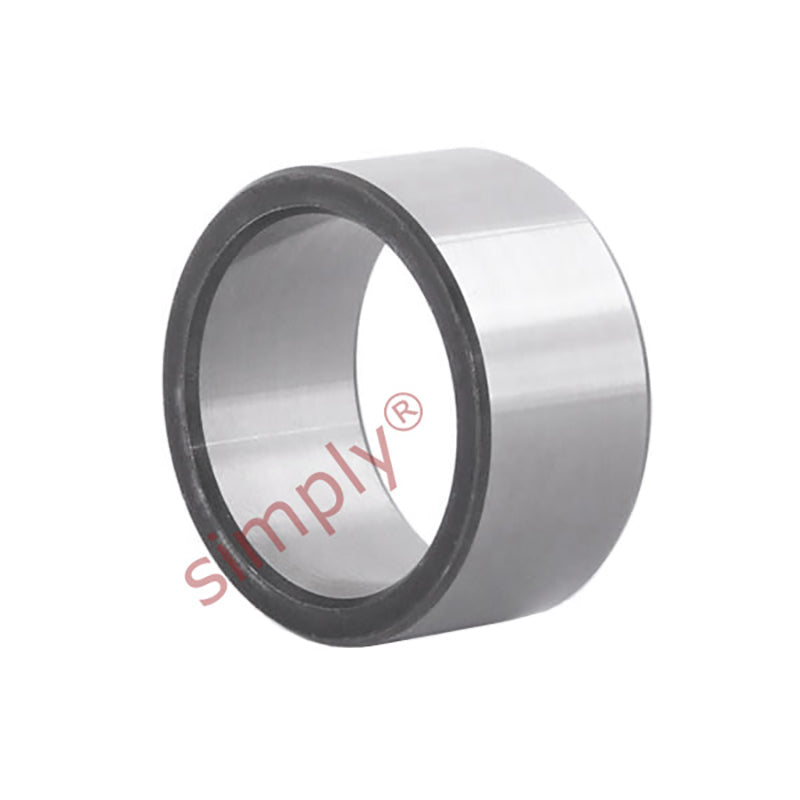

IRB2424 Imperial Inner Race 1-1/2x1-3/4x38.35

Name: IRB2424 Imperial Inner Race 1-1/2x1-3/4x38.35
Brand: IKO
SKU: IRB.2424
Price: 14.77 EUR
Availability: InStock

€14,77 ex VAT

Sale Sold out

In stock

Price Break

10+ €11,25

20+ €10,62

30+ €10,49

40+ €10,37

50+ €10,24

75+ €10,11

100+ €9,48

200+ €9,36

250+ €9,23

500+ €9,10

1000+ €8,85

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Inner Rings: Made from carbon chromium steel are hardened and ground to their final dimensions. To facilitate the use with needle roller bearings a small lead in either side of the sleeve is provided.
Benefits: Hardened and ground, precision accurate component, lead in for easier assembly.

Brand / Quality:: IKO - High Quality
Inside Diameter:: 38.1mm = 1.5 (1-1/2) inch
Outside Diameter:: 44.45mm = 1.75 (1-3/4) inch
Width:: 38.35mm

Technical

d	1-1/2 inch
F	1-3/4 inch
B	38.35mm
Weight	0.121kg
