SKU: JSC161MS-JUB

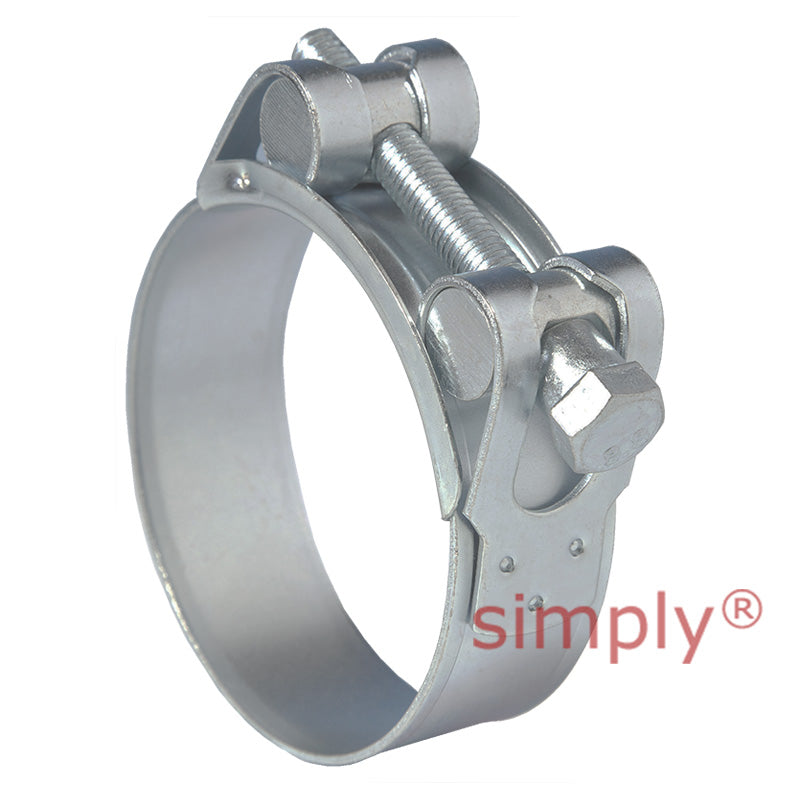

JSC161MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 149mm-161mm Band Width 25mm
JSC161MS Zinc Plated Steel Jubilee Superclamp Clip Adjustment Range 149mm-161mm Band Width 25mm
Regular price
€6,42
ex VAT
Regular price
Sale price
€6,42
ex VAT
In stock
Price Break
5+
€6,36
10+
€6,10
20+
€5,97
50+
€5,78
100+
€5,65
500+
€5,33
1000+
€4,49
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Jubilee Superclamp Clips: Jubilee® Superclamps are heavy duty and suited where higher torque is required with a very tight seal such as delivery and suction hoses. Suitable for mining, quarrying, oil, gas and other offshore applications. Also suitable for waste water extraction and agricultural applications.
Benefits: Single nut adjustment, Smooth band to protect hose line, 360 degree seal.
- Brand / Quality:
- Jubilee - High Quality
- Width:
- 25mm
- Min Adjustment Range:
- 149mm
- Max Adjustment Range:
- 161mm
Technical
Technical
| Adjustment Range | 149mm - 161mm |
|---|---|
| Band Width (+/- 0.1) | 25mm |
| Band Thickness (+/- 0.1) | 1.8mm |
| Recommended Torque | 18.5Nm |
| Maximum Torque | 25Nm |
| Screw Head | 13mm |
