SKU: JTT1210-2RS

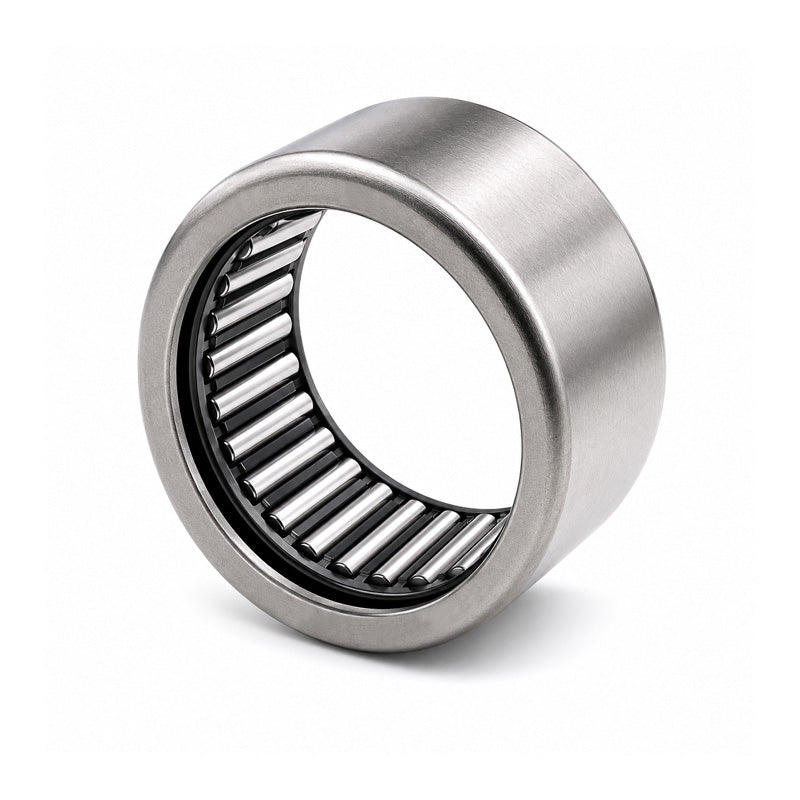

Torrington JTT1210-2RS Imperial Drawn Cup Open End Needle Roller Bearing 3/4x1x5/8 inch
Torrington JTT1210-2RS Imperial Drawn Cup Open End Needle Roller Bearing 3/4x1x5/8 inch
Regular price
€22,27
ex VAT
Regular price
Sale price
€22,27
ex VAT
In stock
Price Break
10+
€19,82
19+
€18,71
29+
€18,48
39+
€18,26
49+
€18,04
74+
€17,82
99+
€16,70
199+
€16,48
249+
€16,26
499+
€16,03
999+
€15,59
Couldn't load pickup availability
Description
Description
|
Imperial Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. |
- Brand / Quality:
- Torrington - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 25.4mm = 1 inch
- Width:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Inside diameter | 3/4 inch |
|---|---|
| Outside diameter | 1 inch |
| Width | 5/8 inch |
| Dynamic load | 2230 lbf |
| Static load | 2740 lbf |
| Limiting speed (grease) | 10000 rpm |
