SKU: K30x37x18-EU

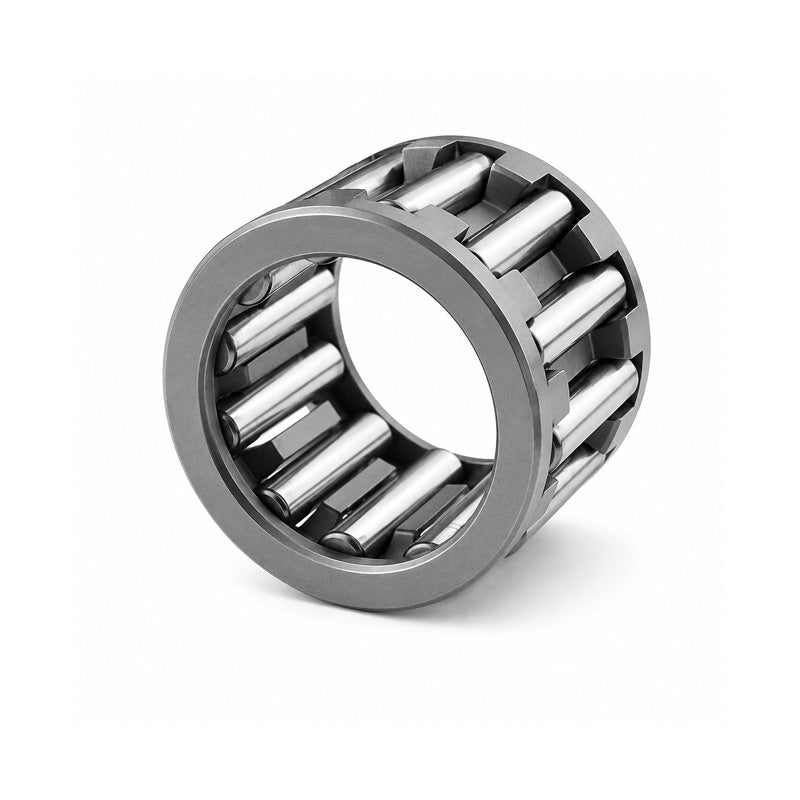

K30x37x18 Budget Needle Roller Cage Assembly 30x37x18mm
K30x37x18 Budget Needle Roller Cage Assembly 30x37x18mm
Regular price
€10,41
ex VAT
Regular price
Sale price
€10,41
ex VAT
In stock
Price Break
10+
€7,93
19+
€7,49
29+
€7,40
39+
€7,31
49+
€7,22
74+
€7,13
99+
€6,69
199+
€6,60
249+
€6,51
499+
€6,42
999+
€6,24
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 37mm
- Width:
- 18mm
Technical
Technical
| Fw | 30mm |
|---|---|
| Ew | 37mm |
| U | 18mm |
| Dynamic load C | 25100 N |
| Static load Co | 39000 N |
| Fatigue load limit Pu | 4650 N |
| Speed in grease | 8500 rpm |
| Speed in oil | 13000 rpm |
| Seal | G/SD30x37x4 |
| Weight | 30 g |
