SKU: K3x5x7TN-EU

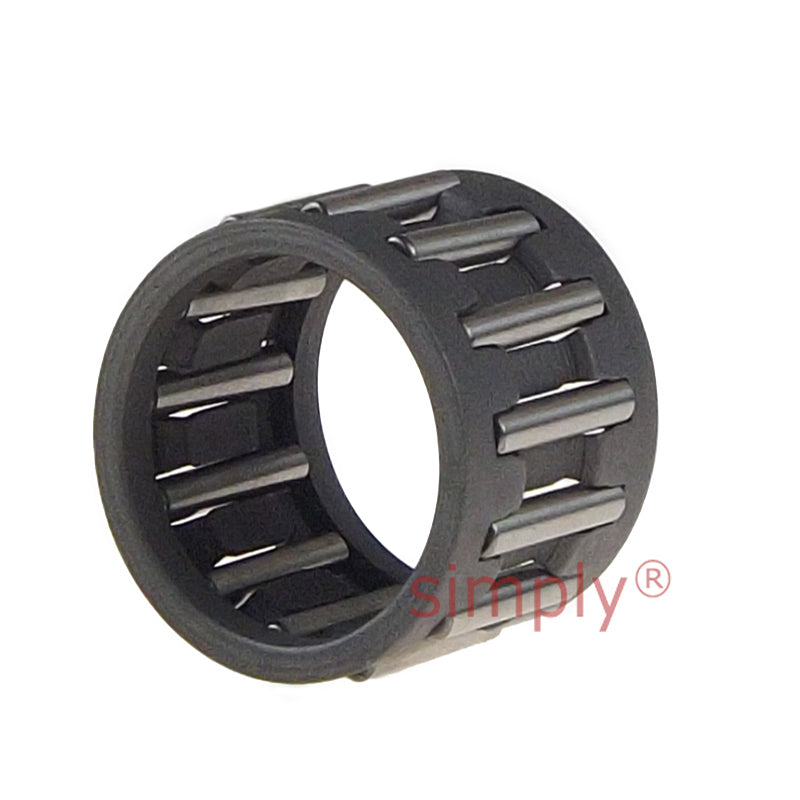

K3x5x7TN Budget Needle Roller Cage Assembly 3x5x7mm
K3x5x7TN Budget Needle Roller Cage Assembly 3x5x7mm
Regular price
€2,99
ex VAT
Regular price
Sale price
€2,99
ex VAT
In stock
Price Break
10+
€2,28
19+
€2,15
29+
€2,13
39+
€2,10
49+
€2,07
74+
€2,05
99+
€1,92
199+
€1,89
249+
€1,87
499+
€1,84
999+
€1,79
Description
Description
|
Budget Needle Roller Cage Assemblies: A ready to mount, self contained bearing component, they enable bearing arrangements with a high load carrying capacity and stiffness yet only requiring a minimal amount of radial space if the shaft and housing serve as raceways. Generally made with steel cages with no specific maximum temperature or when suffixed with TN a glass fibre reinforced polyamide cage material having a maximum operating temperature 120 deg C Benefits: Low cost bearing solution, minimal radial space requirements, high running accuracy. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 3mm
- Outside Diameter:
- 5mm
- Width:
- 7mm
Technical
Technical
| Fw | 3mm |
|---|---|
| Ew | 5mm |
| U | 7mm |
| Dynamic load C | 1510 N |
| Static load Co | 1340 N |
| Fatigue load limit Pu | 134 N |
| Speed in grease | 28000 rpm |
| Speed in oil | 40000 rpm |
| Weight | 0.3 g |
