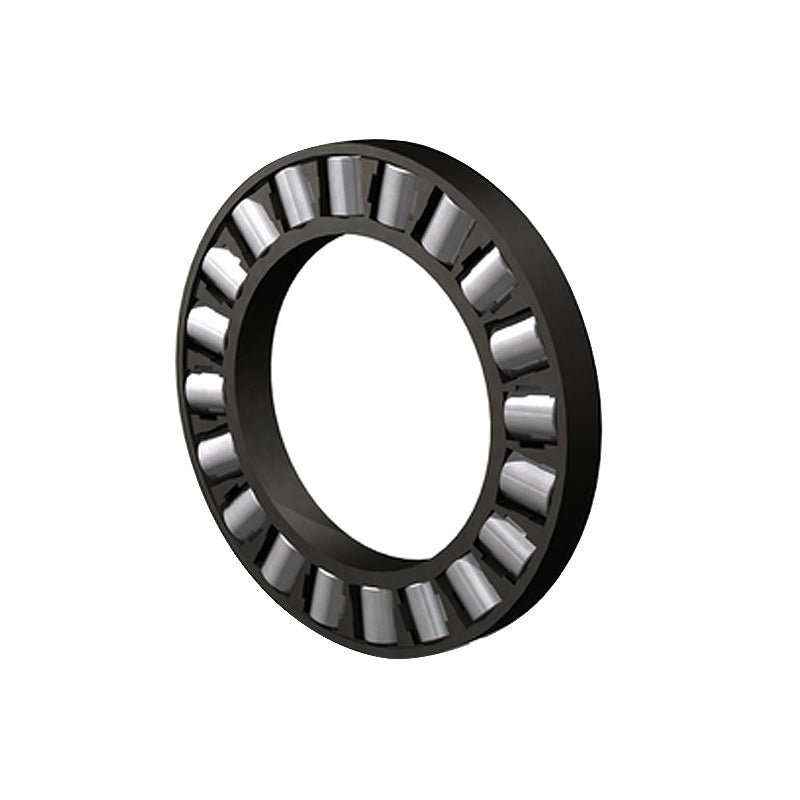

NTN K81217L1 Needle Roller Cage Only 85x125x12mm - Allow 2-3 Days
NTN K81217L1 Needle Roller Cage Only 85x125x12mm - Allow 2-3 Days
Regular price
€116,59
ex VAT
Regular price
Sale price
€116,59
ex VAT
In stock
Price Break
3+
€98,77
4+
€94,78
9+
€92,79
19+
€89,79
49+
€87,80
99+
€82,81
499+
€69,84
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
NTN Needle Roller Thrust Bearing Cages: These cages are engineered for precision, durability, and smooth operation under demanding conditions. Designed by one of the world’s leading bearing manufacturers, these thrust cages provide exceptional rigidity and load-carrying capability while keeping friction to a minimum.
Perfect for applications where space is limited but performance cannot be compromised, NTN thrust cages deliver reliable axial support in high-speed, high-load environments. Their optimised cage design ensures accurate needle roller guidance, reduced heat generation, and long service life. Benefits: High axial load capacity, low friction, compact and lightweight design |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 125mm
- Width:
- 12mm
Technical
Technical
| Dc1 - Inside diameter | 85mm |
|---|---|
| Dc - Outside diameter | 125mm |
| Dw - Roller Width | 12mm |
| WS inner ring reference | WS81217 |
| GS outer ring reference | GS81217 |
| Ea - Rollers reference outer diameter | 116.9mm |
| Eb - Rollers reference inner diameter | 92.2mm |
| Ca - Dynamic axial load rating | 169 kN |
| C0a - Static axial load rating | 550 kN |
| Grease lubrication limit speed | 580 tr/min |
| Oil lubrication limit speed | 2300 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| tmax - Maximum operating temperature | +120 Deg C |
