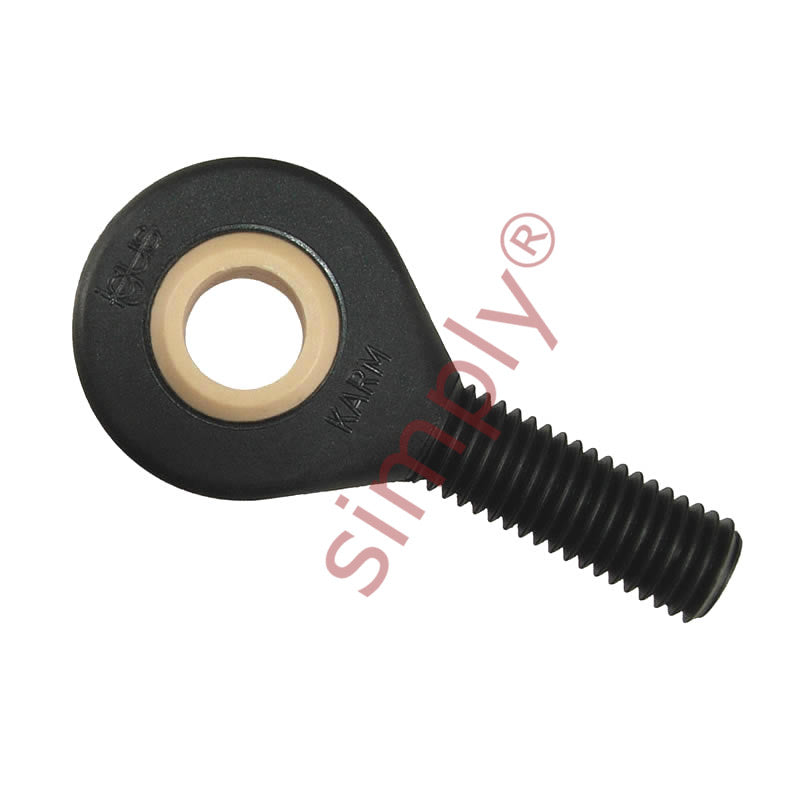

igubal KARM20 Right Hand Male Plastic Rod End 20mm Bore M20x1.5 Fine Thread
igubal KARM20 Right Hand Male Plastic Rod End 20mm Bore M20x1.5 Fine Thread
Regular price
€9,72
ex VAT
Regular price
Sale price
€9,72
ex VAT
In stock
Price Break
4+
€7,40
9+
€6,99
19+
€6,91
29+
€6,82
39+
€6,74
49+
€6,66
59+
€6,24
69+
€6,16
79+
€6,07
89+
€5,99
99+
€5,82
Description
Description
|
IGUS igubal® KARM series right hand male thread rod end bearings: These maintenance free plastic rod ends are a dry operation solution with a high stiffening and very high fatigue strength in varying loads. They compensate for misalignment errors and edge loads and are insensitive to dirt, dust and lint and have high dampening qualities. They are resistant to corrosion and chemicals. Operating Temperature Range: -30 Deg C to + 80 Deg C long term - short term up to +120 Deg C Materials: Ball material iglidur® W300, Housing: igumid G Uses: They are suitable for rotary, oscillating and linear movements and are light weight. Tolerances: They are manufactured in accordance to DIN ISO 12240 Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free |
- Brand / Quality:
- Igus - High Quality
- Thread Size:
- M20x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 20mm
Technical
Technical
| d1 | 20mm |
|---|---|
| d2 | 50mm |
| d3 | M20x1.5 |
| C1 | 18mm |
| B | 25mm |
| h | 78mm |
| l1 | 45mm |
| l2 | 104mm |
| Max pivot angle | 23° |
| Max static tensile strength (short term) | 6000 N |
| Max static tensile strength (long term) | 3000 N |
| Max radial load (short term) | 1300 N |
| Max radial load (long term) | 650 N |
| Min thread depth | 32mm |
| Max torque strength outside thread | 25 Nm |
| Max torque through ball (standard) | 55 Nm |
| Max torque through ball (MH) | 200 Nm |
| Weight | 58 g |
