SKU: KM22-MB

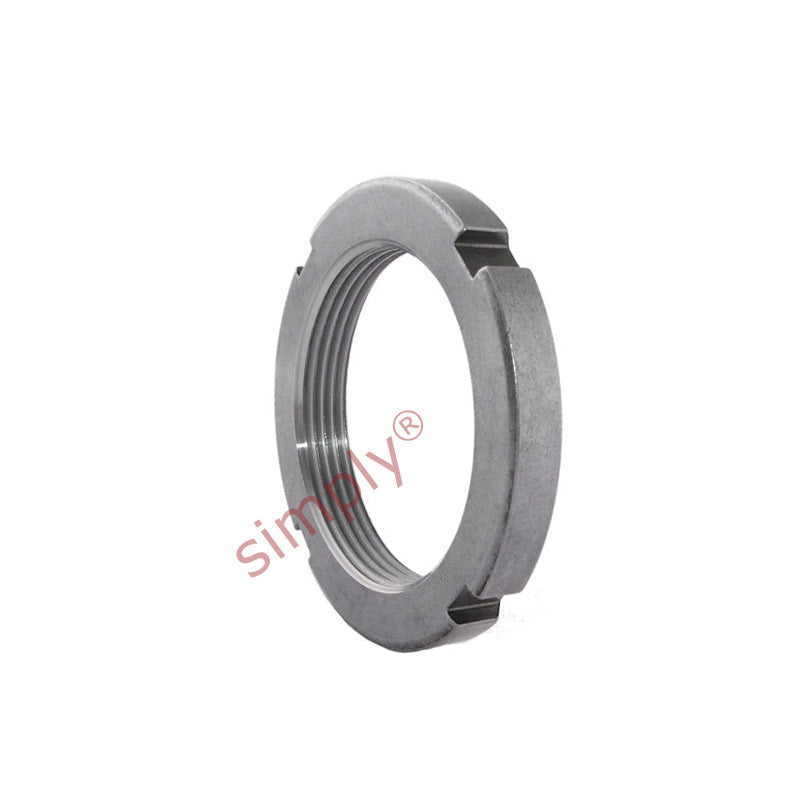

KM22 Lock Nuts for Adaptor and Withdrawal Sleeves 110x145x19mm

Name: KM22 Lock Nuts for Adaptor and Withdrawal Sleeves 110x145x19mm
Brand: Major Brand
SKU: KM22-MB
Price: 55.81 EUR
Availability: InStock

€55,81 ex VAT

Sale Sold out

In stock

Price Break

10+ €42,50

19+ €40,12

29+ €39,64

39+ €39,16

49+ €38,68

74+ €38,20

99+ €35,82

199+ €35,34

249+ €34,86

499+ €34,38

999+ €33,43

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Lock Nuts: Are supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts as well as facilitate the mounting of taper bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: M110x2

Technical

G	M110x2mm
d1	133mm
d3	145mm
B	19mm
b	12mm
h	5mm
Weight	0.89kg
Appropriate locking washer	MB22

Reviews

View full details
