SKU: KMK12-SKF

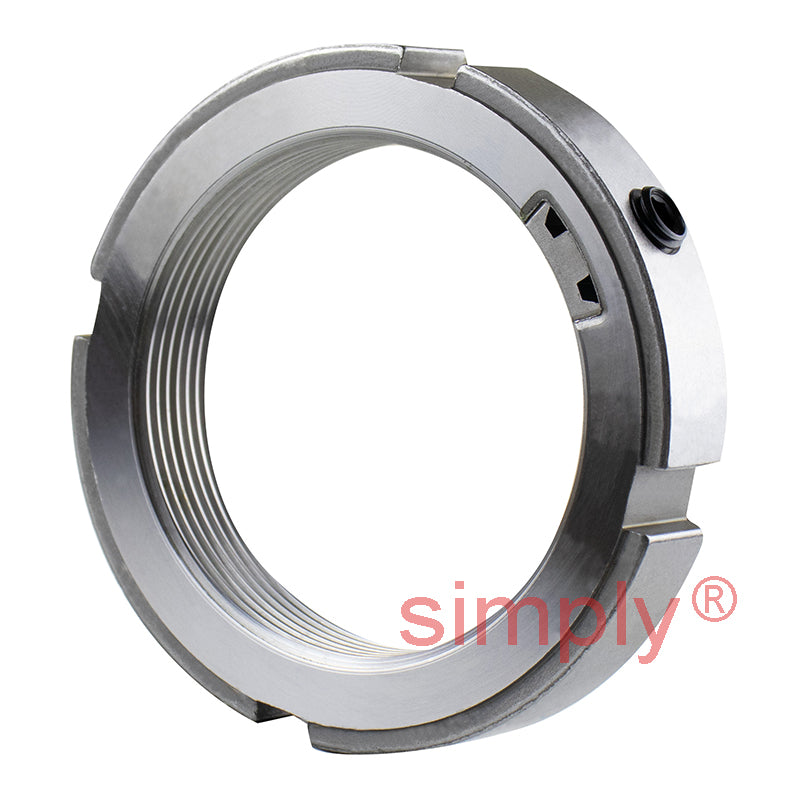

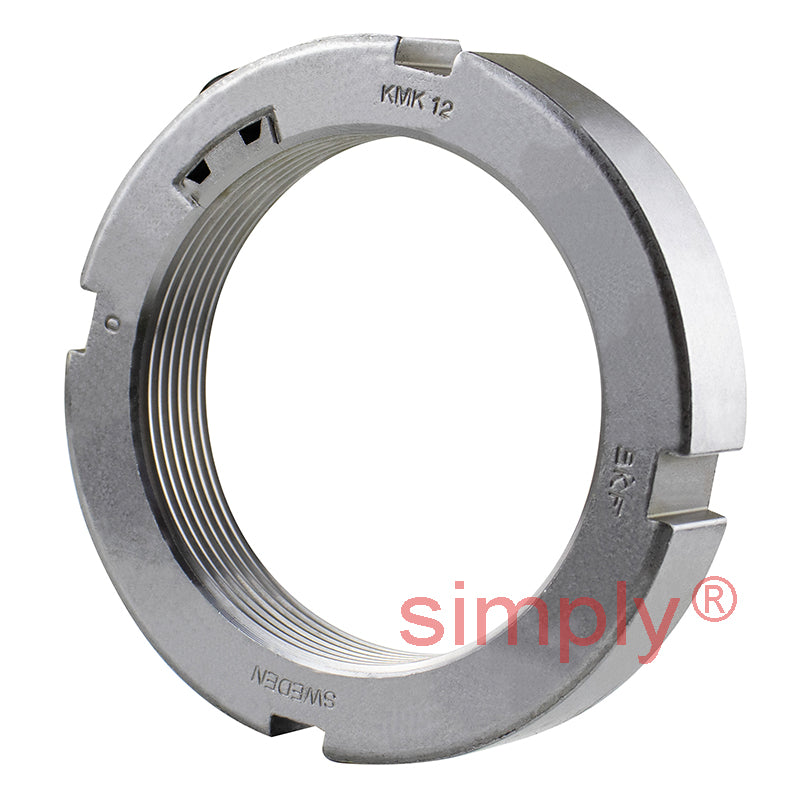

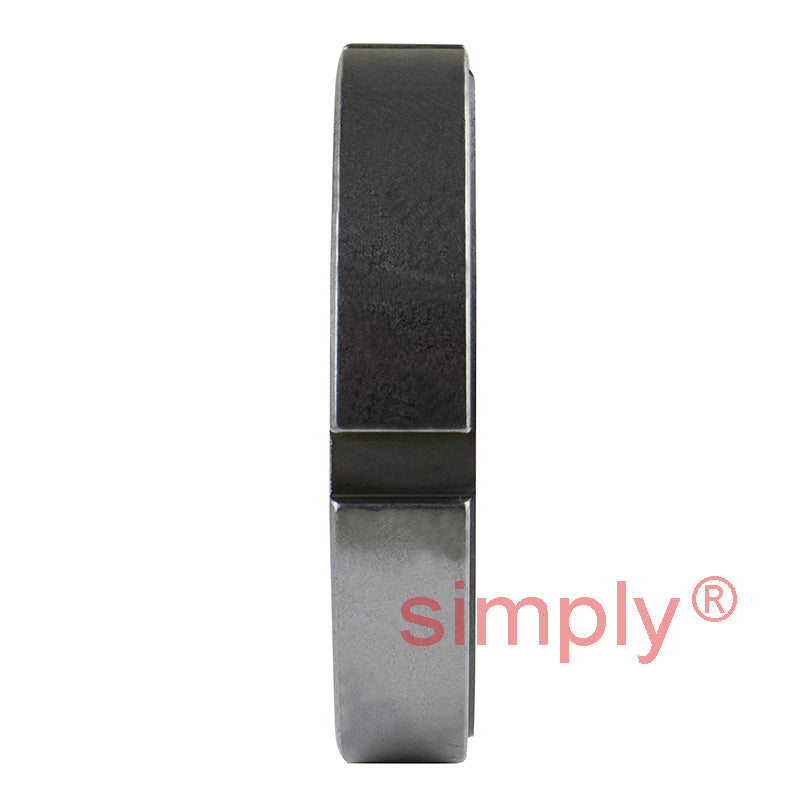

SKF KMK12 Lock Nut with Integral Locking Device M60x2mm
SKF KMK12 Lock Nut with Integral Locking Device M60x2mm
Regular price
€70,08
ex VAT
Regular price
Sale price
€70,08
ex VAT
In stock
Price Break
10+
€53,37
19+
€50,37
29+
€49,77
39+
€49,17
49+
€48,57
74+
€47,97
99+
€44,97
199+
€44,38
249+
€43,78
499+
€43,18
999+
€41,98
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M60x2
Technical
Technical
| d1 | 74mm |
|---|---|
| d3 | 80mm |
| B | 13mm |
| b | 7mm |
| h | 3mm |
| Axial load capacity | 95 kN |
| Loosening torque | 188 Nm |
| Weight | 0.2 kg |
| G | M60x2 |
| Designation | KMK12 |
| Locking device | HN12 |
| Grub screw | M8 |
| Grub screw torque | 18 Nm |
