SKU: KMK13-SKF

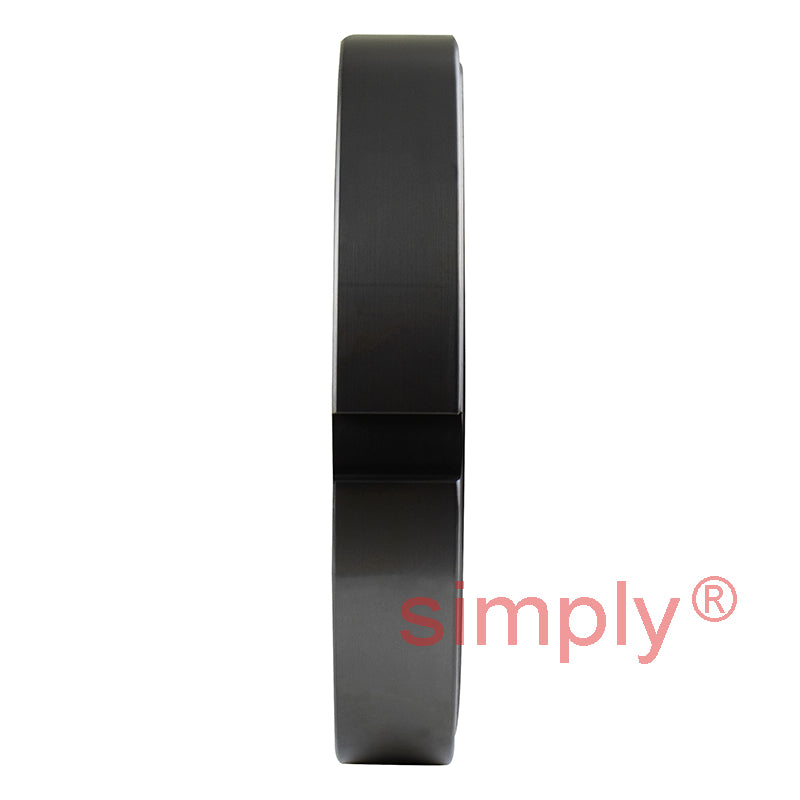

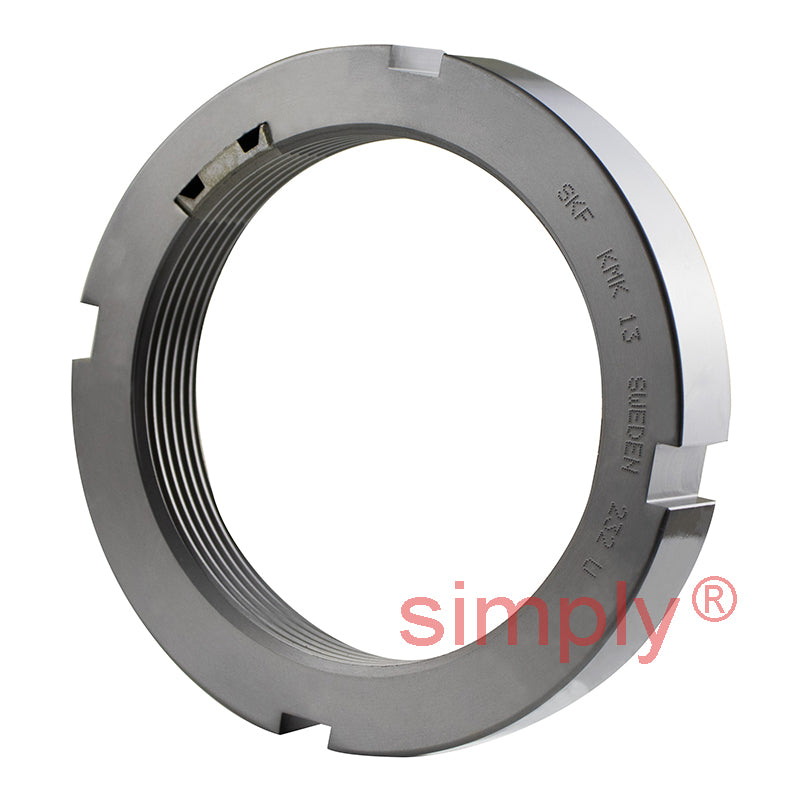

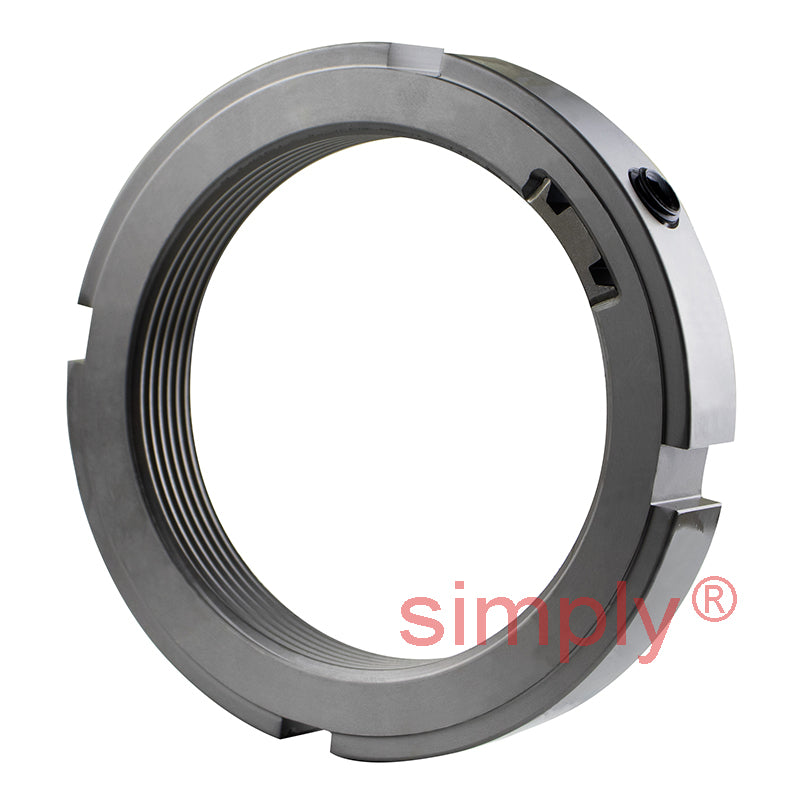

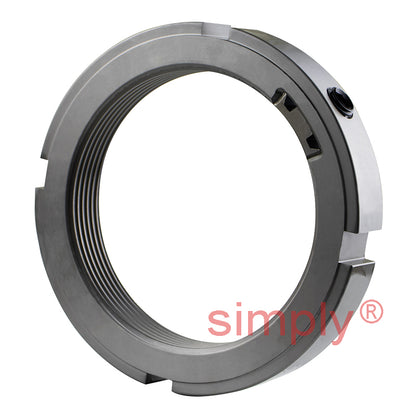

SKF KMK13 Lock Nut with Integral Locking Device M65x2mm
SKF KMK13 Lock Nut with Integral Locking Device M65x2mm
Regular price
€93,29
ex VAT
Regular price
Sale price
€93,29
ex VAT
In stock
Price Break
10+
€71,05
19+
€67,06
29+
€66,26
39+
€65,46
49+
€64,66
74+
€63,86
99+
€59,87
199+
€59,07
249+
€58,27
499+
€57,48
999+
€55,88
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M65x2
Technical
Technical
| d1 | 79mm |
|---|---|
| d3 | 85mm |
| B | 14mm |
| b | 7mm |
| h | 3mm |
| Axial load capacity | 108 kN |
| Loosening torque | 203 Nm |
| Weight | 0.24 kg |
| G | M65x2 |
| Designation | KMK13 |
| Locking device | HN13 |
| Grub screw | M8 |
| Grub screw torque | 18 Nm |
