SKU: KMK20-SKF

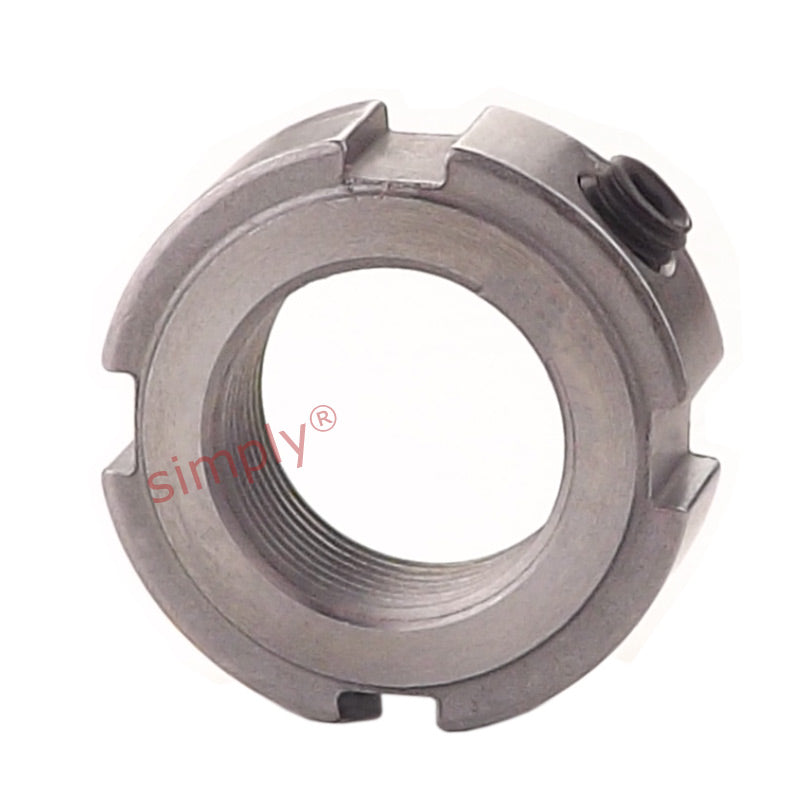

SKF KMK20 Lock Nut with Integral Locking Device M100x2mm
SKF KMK20 Lock Nut with Integral Locking Device M100x2mm
Regular price
€140,42
ex VAT
Regular price
Sale price
€140,42
ex VAT
In stock
Price Break
10+
€124,97
19+
€117,95
29+
€116,55
39+
€115,14
49+
€113,74
74+
€112,34
99+
€105,32
199+
€103,91
249+
€102,51
499+
€101,10
999+
€98,29
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M100x2
Technical
Technical
| d1 | 122mm |
|---|---|
| d3 | 130mm |
| B | 20mm |
| b | 10mm |
| h | 4mm |
| Axial load capacity | 255 kN |
| Loosening torque | 472 Nm |
| Weight | 0.8 kg |
| G | M100x2 |
| Designation | KMK20 |
| Locking device | HN20 |
| Grub screw | M10 |
| Grub screw torque | 35 Nm |
