SKU: KMK4-SKF

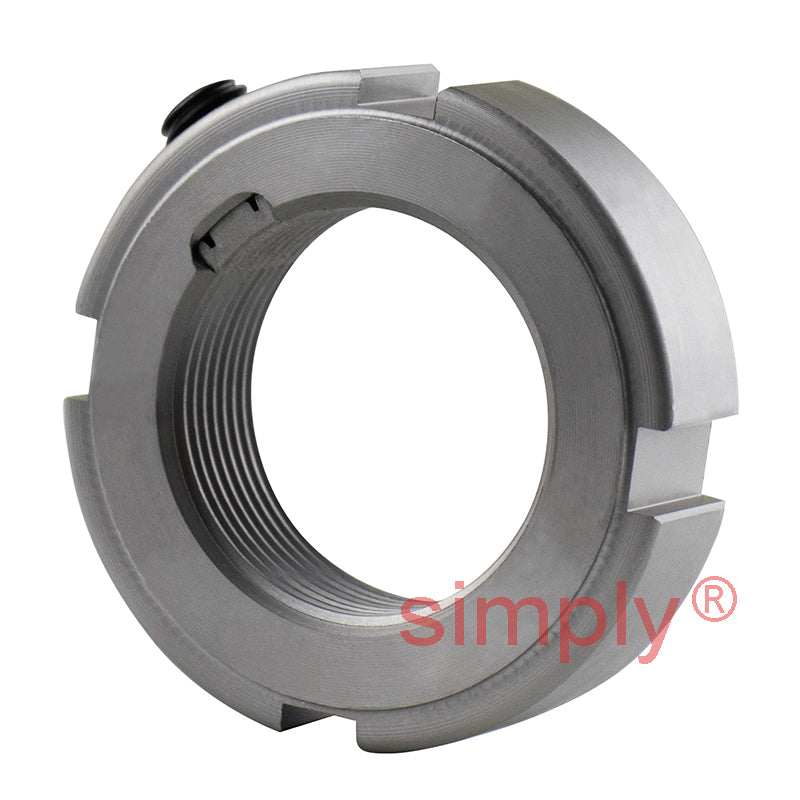

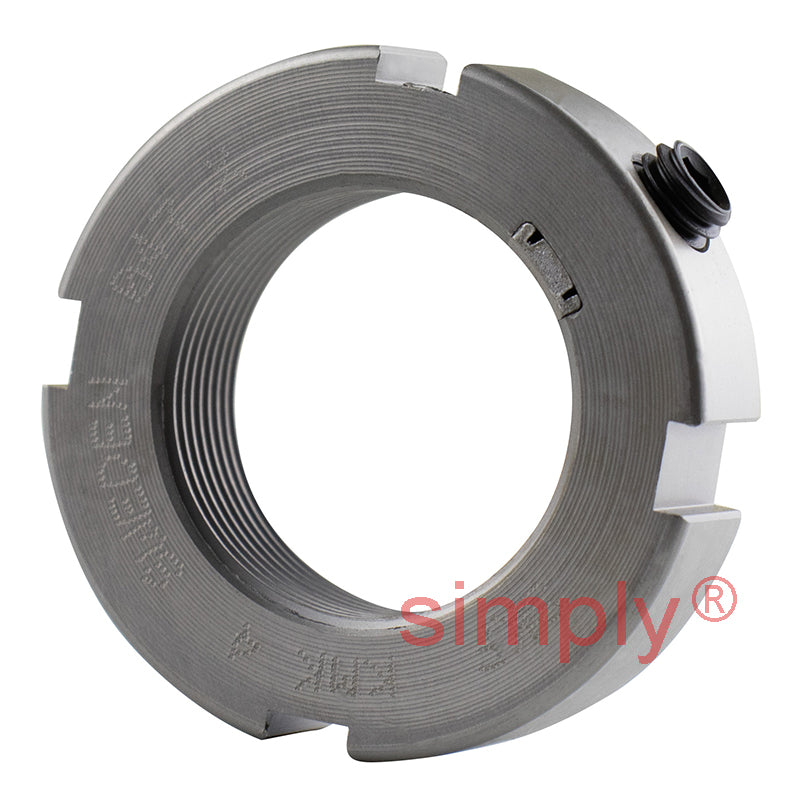

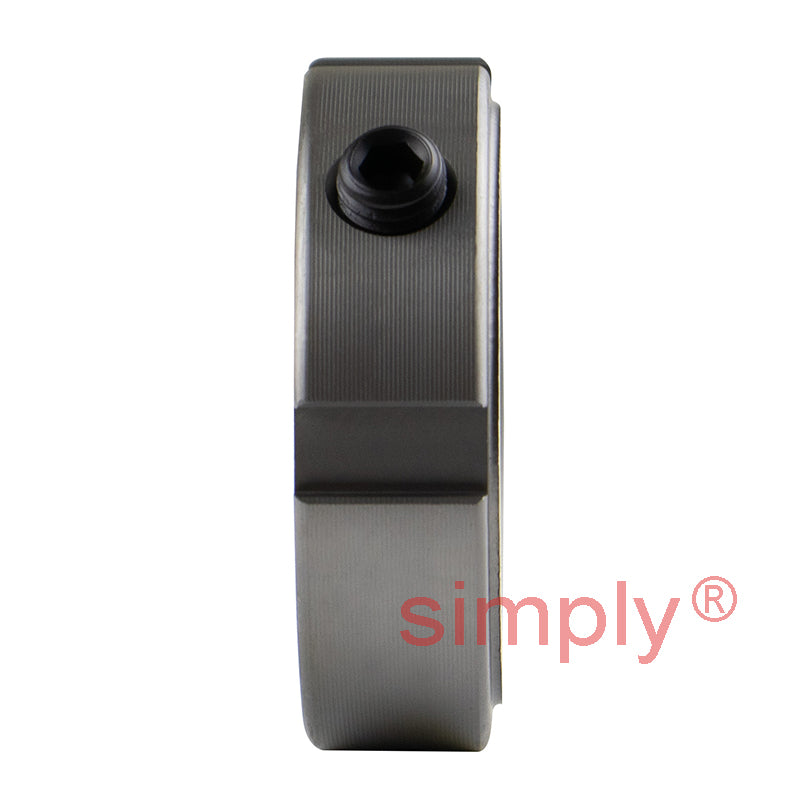

SKF KMK4 Lock Nut with Integral Locking Device M20x1mm

SKF KMK4 Lock Nut with Integral Locking Device M20x1mm
€44,22 ex VAT
€44,22 ex VAT
Sale Sold out

In stock

Price Break
10+ €33,68
19+ €31,79
29+ €31,41
39+ €31,03
49+ €30,65
74+ €30,27
99+ €28,38
199+ €28,00
249+ €27,63
499+ €27,25
999+ €26,49
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M20x1
Technical
d1 28mm
d3 32mm
B 9mm
b 4mm
h 2mm
Axial load capacity 24 kN
Loosening torque 16 Nm
Weight 0.03 kg
G M20x1
Designation KMK4
Locking device HN4
Grub screw M5
Grub screw torque 4 Nm
