SKU: KMK5-SKF

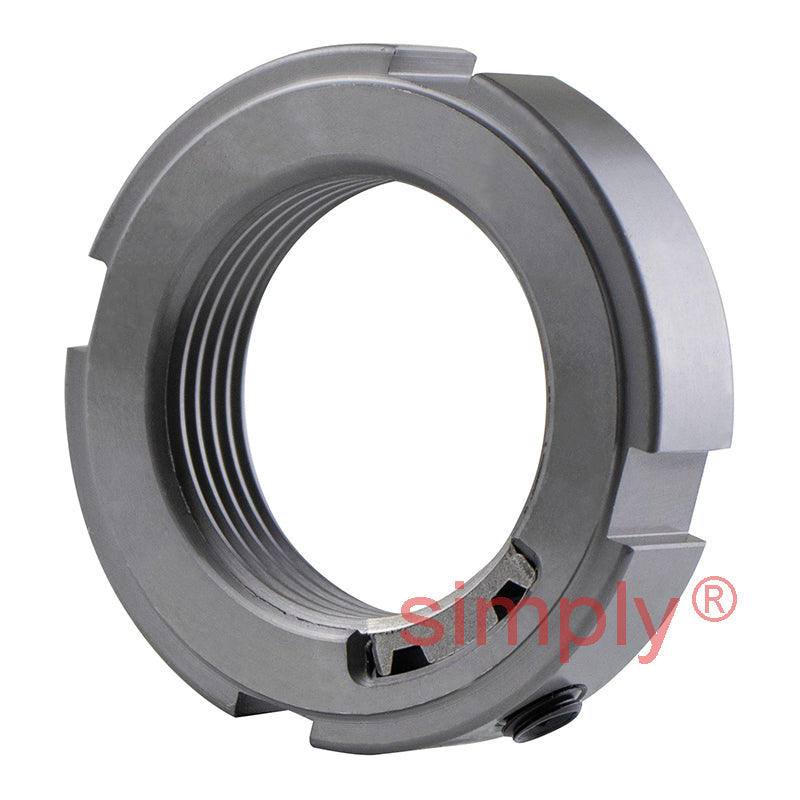

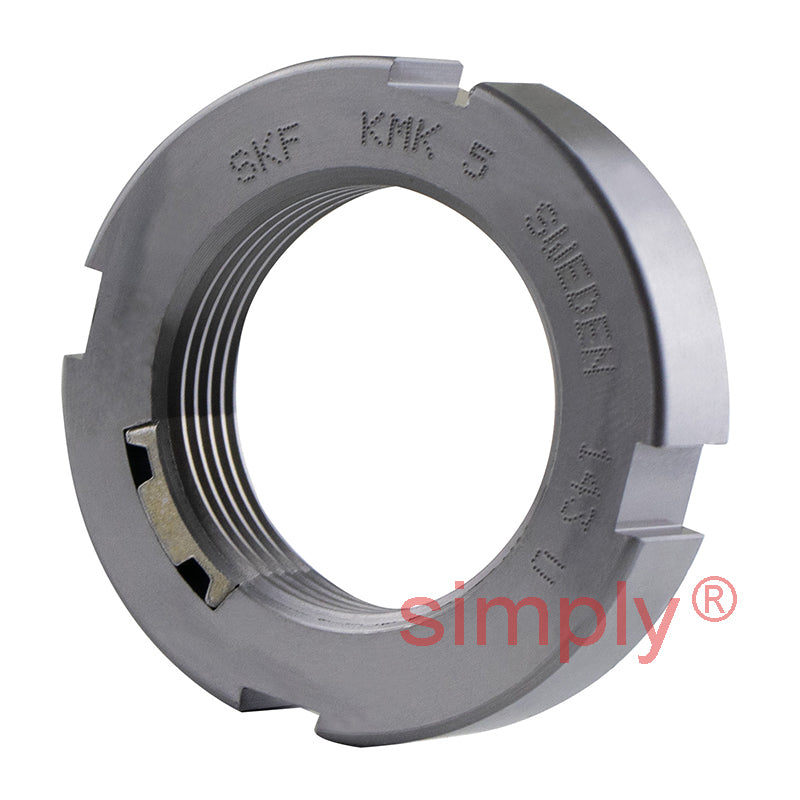

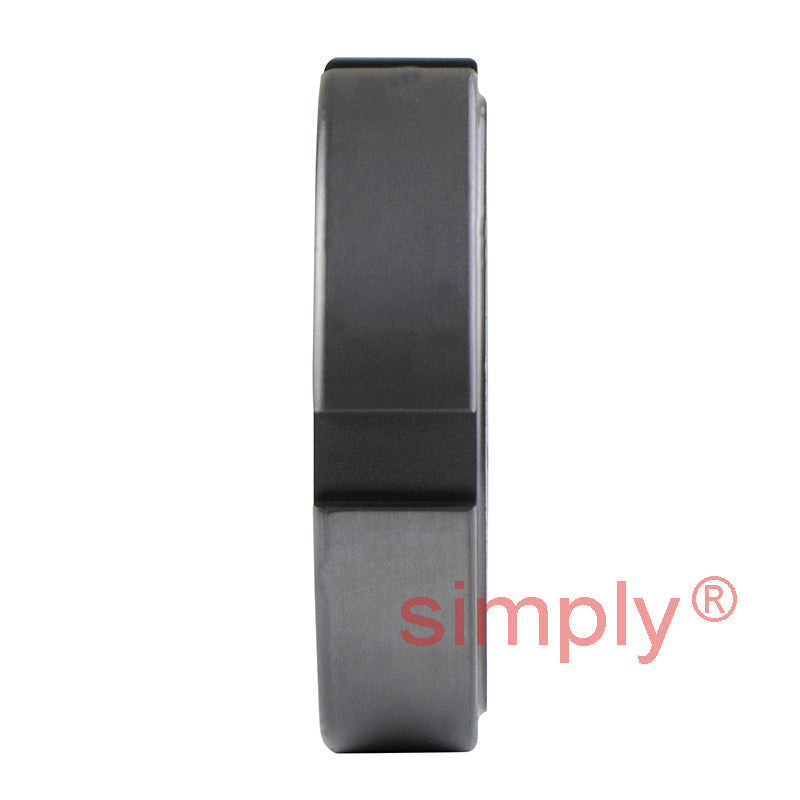

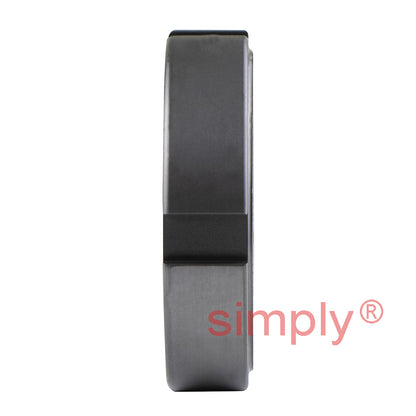

SKF KMK5 Lock Nut with Integral Locking Device M25x1.5mm
SKF KMK5 Lock Nut with Integral Locking Device M25x1.5mm
Regular price
€44,73
ex VAT
Regular price
Sale price
€44,73
ex VAT
In stock
Price Break
10+
€34,07
19+
€32,16
29+
€31,77
39+
€31,39
49+
€31,01
74+
€30,62
99+
€28,71
199+
€28,33
249+
€27,94
499+
€27,56
999+
€26,80
Share this product
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M25x1.5
Technical
Technical
| d1 | 34mm |
|---|---|
| d3 | 38mm |
| B | 9mm |
| b | 5mm |
| h | 2mm |
| Axial load capacity | 31.5 kN |
| Loosening torque | 29 Nm |
| Weight | 0.03 kg |
| G | M25x1.5 |
| Designation | KMK5 |
| Locking device | HN5 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
