SKU: KMK6-SKF

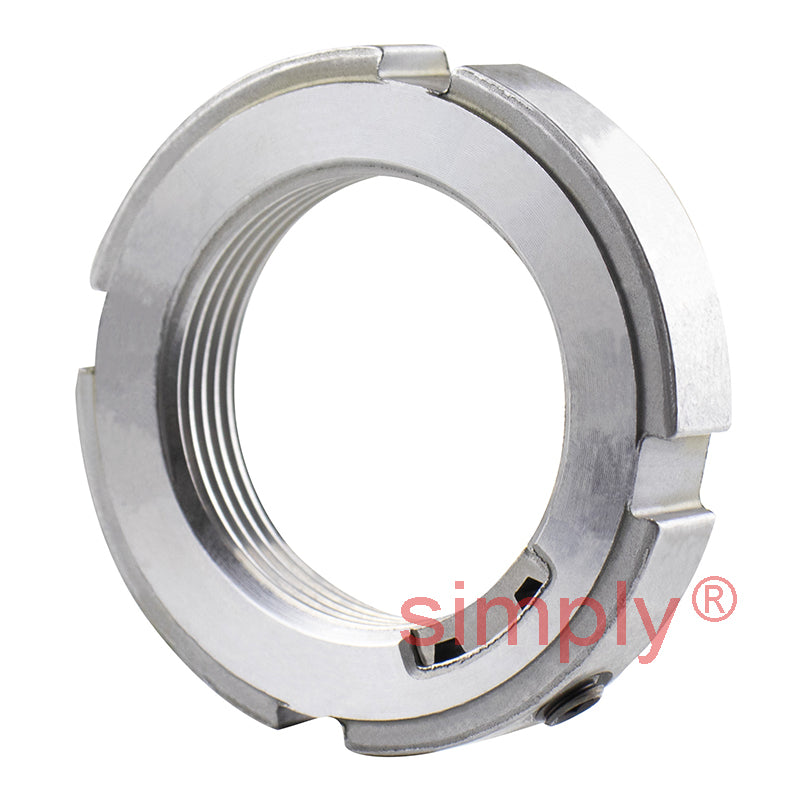

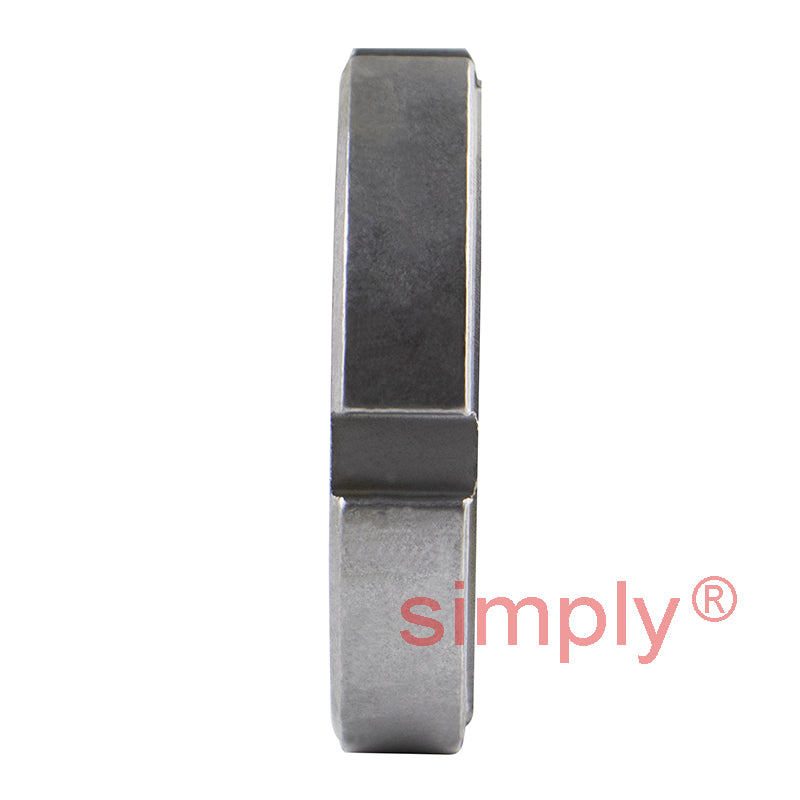

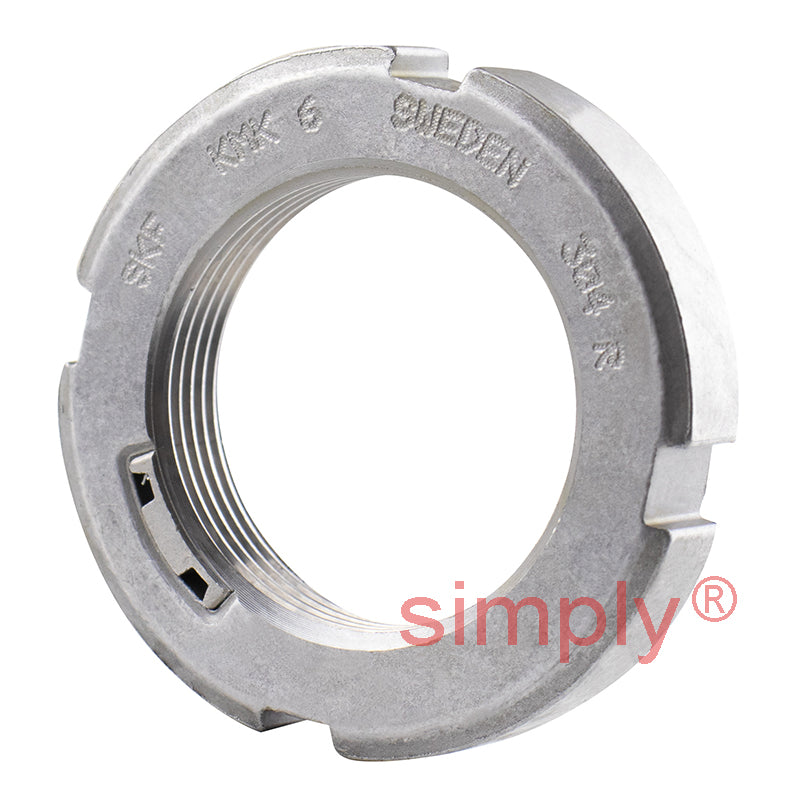

SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm

SKF KMK6 Lock Nut with Integral Locking Device M30x1.5mm
€47,00 ex VAT
€47,00 ex VAT
Sale Sold out

In stock

Price Break
10+ €35,80
19+ €33,79
29+ €33,38
39+ €32,98
49+ €32,58
74+ €32,18
99+ €30,17
199+ €29,76
249+ €29,36
499+ €28,96
999+ €28,15
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required.
Benefits: Efficient, secure, inexpensive, removable and re-useable
Brand / Quality:
SKF - High Quality
Thread Size:
M30x1.5
Technical
d1 41mm
d3 45mm
B 9mm
b 5mm
h 2mm
Axial load capacity 36.5 kN
Loosening torque 35 Nm
Weight 0.06 kg
G M30x1.5
Designation KMK6
Locking device HN6
Grub screw M5
Grub screw torque 4 Nm
