SKU: KMK7-SKF

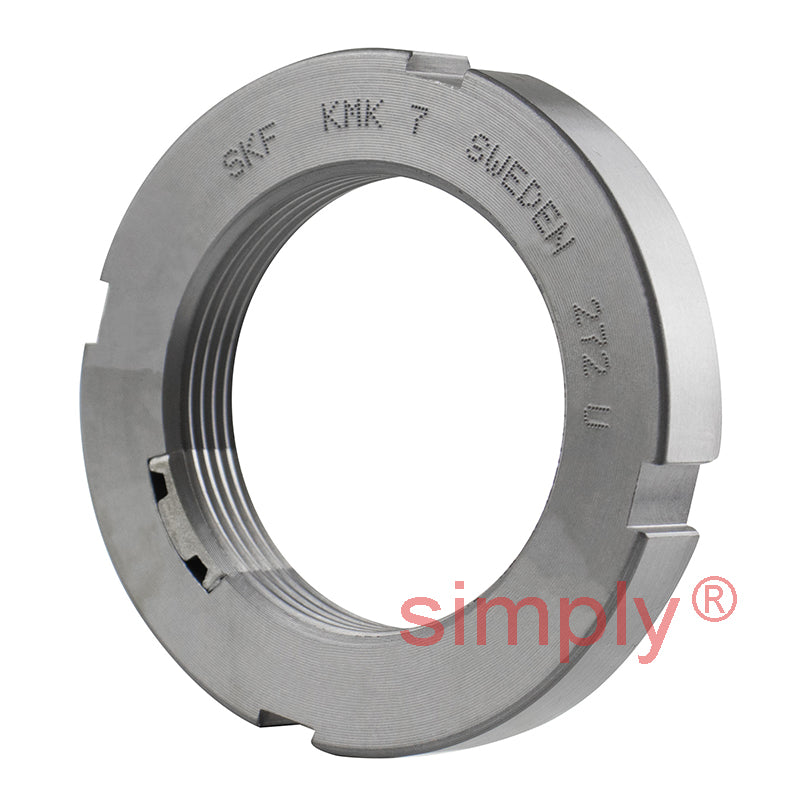

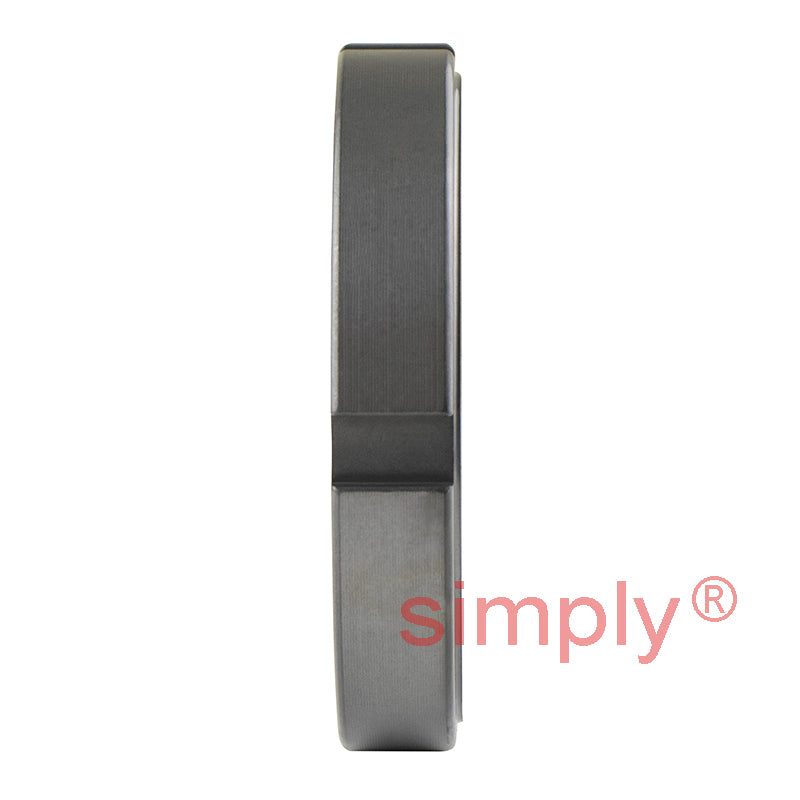

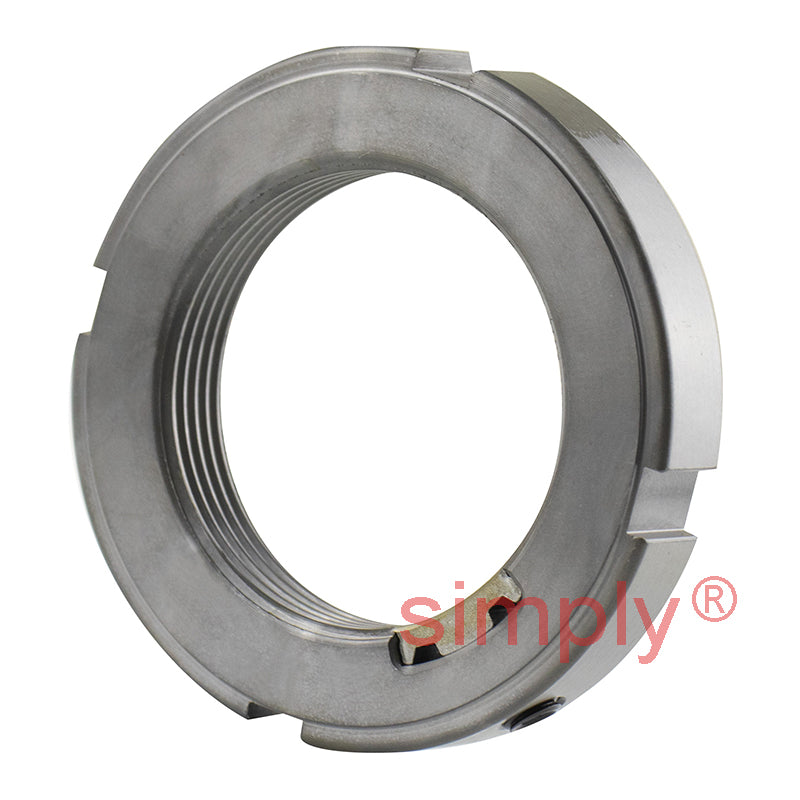

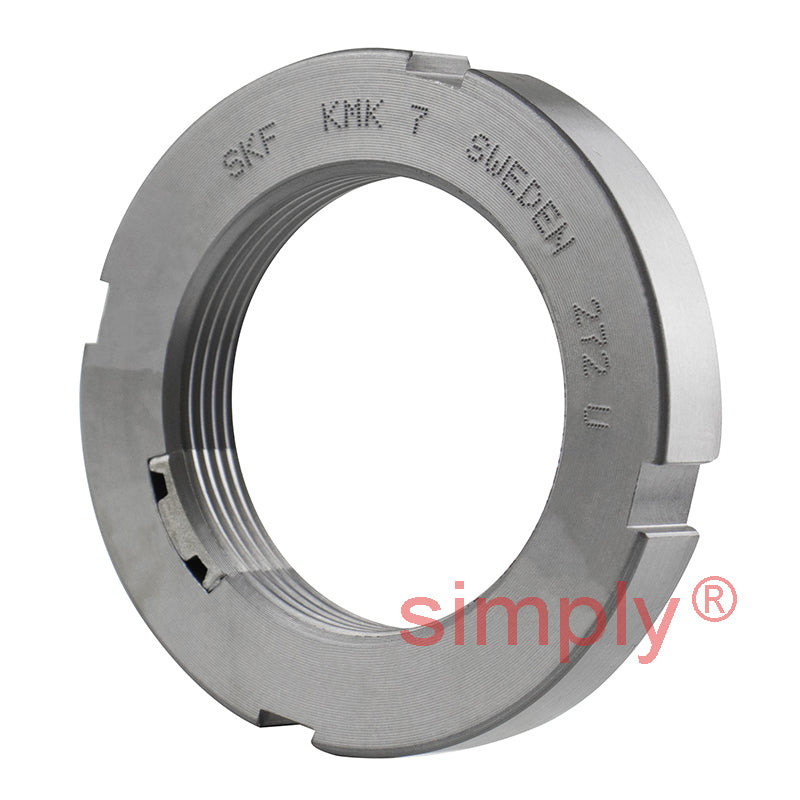

SKF KMK7 Lock Nut with Integral Locking Device M35x1.5mm
SKF KMK7 Lock Nut with Integral Locking Device M35x1.5mm
Regular price
€51,19
ex VAT
Regular price
Sale price
€51,19
ex VAT
In stock
Price Break
10+
€45,56
19+
€43,00
29+
€42,49
39+
€41,98
49+
€41,46
74+
€40,95
99+
€38,39
199+
€37,88
249+
€37,37
499+
€36,86
999+
€35,83
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M35x1.5
Technical
Technical
| d1 | 48mm |
|---|---|
| d3 | 52mm |
| B | 9mm |
| b | 5mm |
| h | 2mm |
| Axial load capacity | 50 kN |
| Loosening torque | 40 Nm |
| Weight | 0.07 kg |
| G | M35x1.5 |
| Designation | KMK7 |
| Locking device | HN7 |
| Grub screw | M5 |
| Grub screw torque | 4 Nm |
