SKU: KMK8-SKF

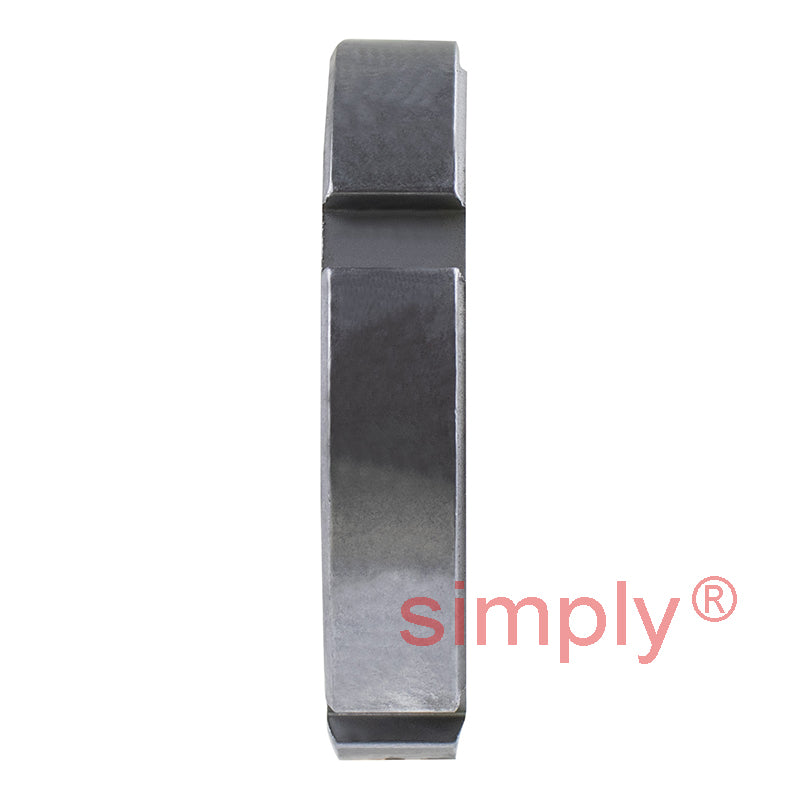

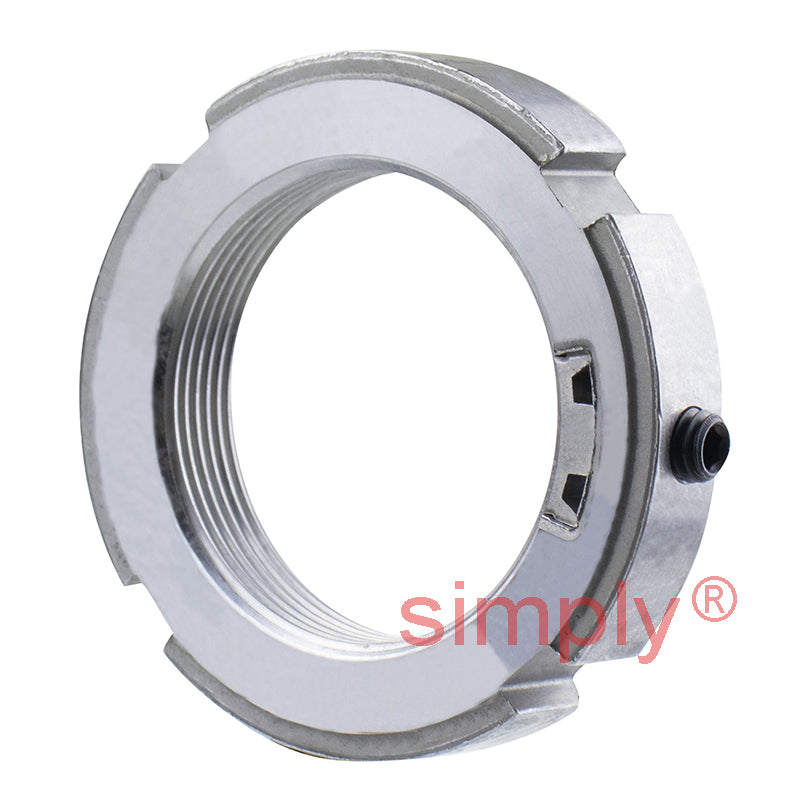

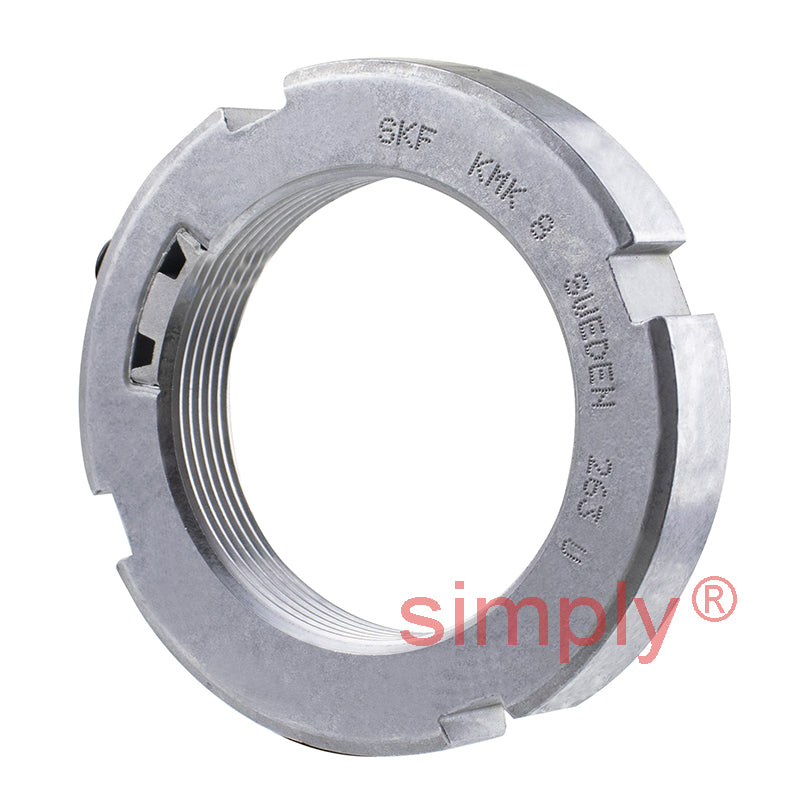

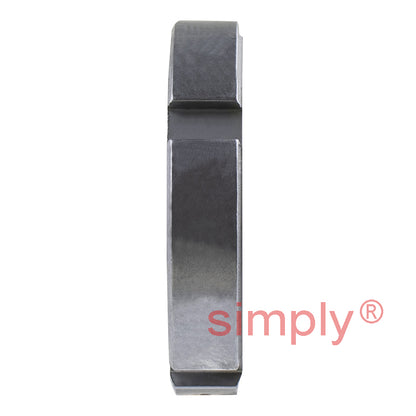

SKF KMK8 Lock Nut with Integral Locking Device M40x1.5mm
SKF KMK8 Lock Nut with Integral Locking Device M40x1.5mm
Regular price
€54,64
ex VAT
Regular price
Sale price
€54,64
ex VAT
In stock
Price Break
10+
€48,63
19+
€45,90
29+
€45,35
39+
€44,80
49+
€44,26
74+
€43,71
99+
€40,98
199+
€40,43
249+
€39,89
499+
€39,34
999+
€38,25
Couldn't load pickup availability
Description
Description
|
SKF Precision KMK Lock Nuts: These lock nuts have an integral locking device consisting of a grub screw against a pressure plate that has the thread profile machined on it, When tightened there is no possibility of damaging the threads and mounting and dismounting are a simple operation. The outer perimeter of the nut has the usual slots for use of a nut spanner or socket. No additional lock washers or clips are required. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M40x1.5
Technical
Technical
| d1 | 53mm |
|---|---|
| d3 | 58mm |
| B | 11mm |
| b | 6mm |
| h | 2.5mm |
| Axial load capacity | 62 kN |
| Loosening torque | 67 Nm |
| Weight | 0.11 kg |
| G | M40x1.5 |
| Designation | KMK8 |
| Locking device | HN8 |
| Grub screw | M6 |
| Grub screw torque | 8 Nm |
