SKU: KMTA8-SKF

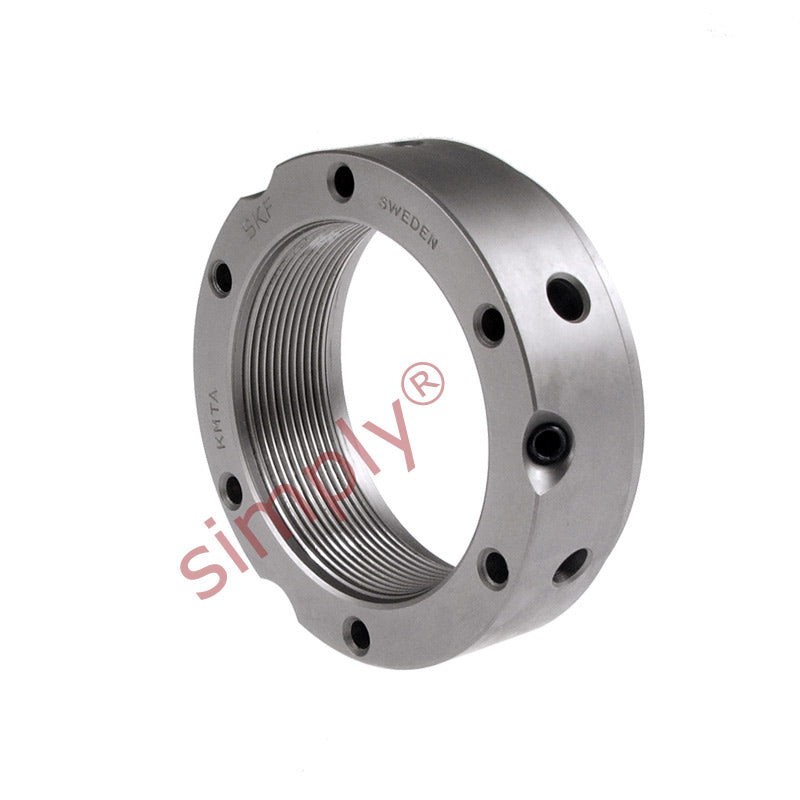

SKF KMTA8 Precision Locking Nut with Locking Pins M40x1.5mm
SKF KMTA8 Precision Locking Nut with Locking Pins M40x1.5mm
Regular price
€94,04
ex VAT
Regular price
Sale price
€94,04
ex VAT
In stock
Price Break
10+
€71,62
19+
€67,60
29+
€66,79
39+
€65,99
49+
€65,18
74+
€64,38
99+
€60,35
199+
€59,55
249+
€58,74
499+
€57,94
999+
€56,33
Share this product
Description
Description
|
SKF Precision KMTA Lock Nuts: Manufactured with standard ISO threads and a relieved external diameter primarily used for precision bearing installation. The inclusion of 3 locking pins mounted at 120 degrees around the perimeter and diagonally to the threads and allow for minor radial alignment adjustments. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M40x1.5
Technical
Technical
| G | M40x1.5 |
|---|---|
| d2 | 58mm |
| d3 | 52mm |
| d4 | 42mm |
| B | 22mm |
| J1 | 50.5mm |
| J2 | 12mm |
| N1 | 4.3mm |
| N2 | 5mm |
| Axial load capacity | 210 kN |
| Loosening torque | 80 Nm |
| Weight | 0.23 kg |
| Spanner | B58-62 |
| Grub Screw | M6 |
| Screw torque | 8 Nm |
| Name | KMTA8 |
