SKU: KR16-MB

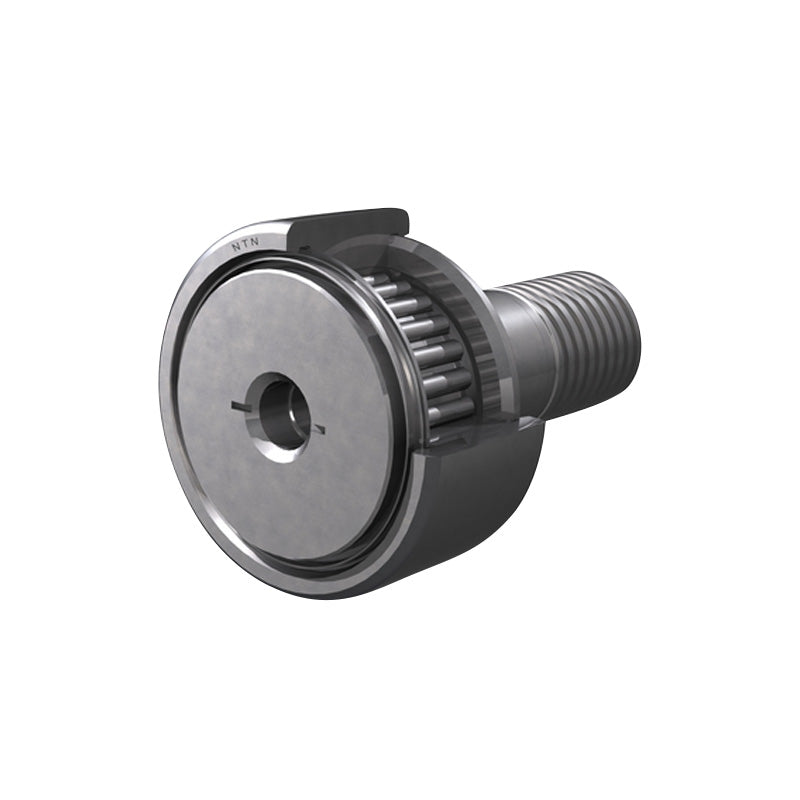

Major Brand KR16 Crowned Cam Follower 16x11x6 M6 Thread
Major Brand KR16 Crowned Cam Follower 16x11x6 M6 Thread
Regular price
€39,59
ex VAT
Regular price
Sale price
€39,59
ex VAT
In stock
Price Break
10+
€35,24
19+
€33,26
29+
€32,86
39+
€32,46
49+
€32,07
74+
€31,67
99+
€29,69
199+
€29,30
249+
€28,90
499+
€28,50
999+
€27,71
Couldn't load pickup availability
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- Major Brand - High Quality
- Thread Pitch:
- M6
- Outside Diameter:
- 16mm
- Width:
- 11mm

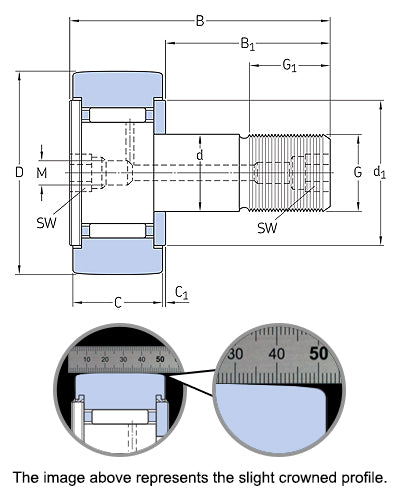

Technical
Technical
| D | 16mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 6mm |
| B | 28mm |
| B1 | 16mm |
| C1 | 0.6mm |
| d1 | 12.5mm |
| G | M6mm |
| G1 | 8mm |
| M | 4mm |
| r min | 0.15mm |
| Dynamic load | 3140 N |
| Static load | 3200 N |
| Fatigue load limit Pu | 345 N |
| Radial dynamic load | 2900 N |
| Radial static load | 4150 N |
| Speed rating | 14000 rpm |
| Weight | 19 g |
