SKU: KR19-EU

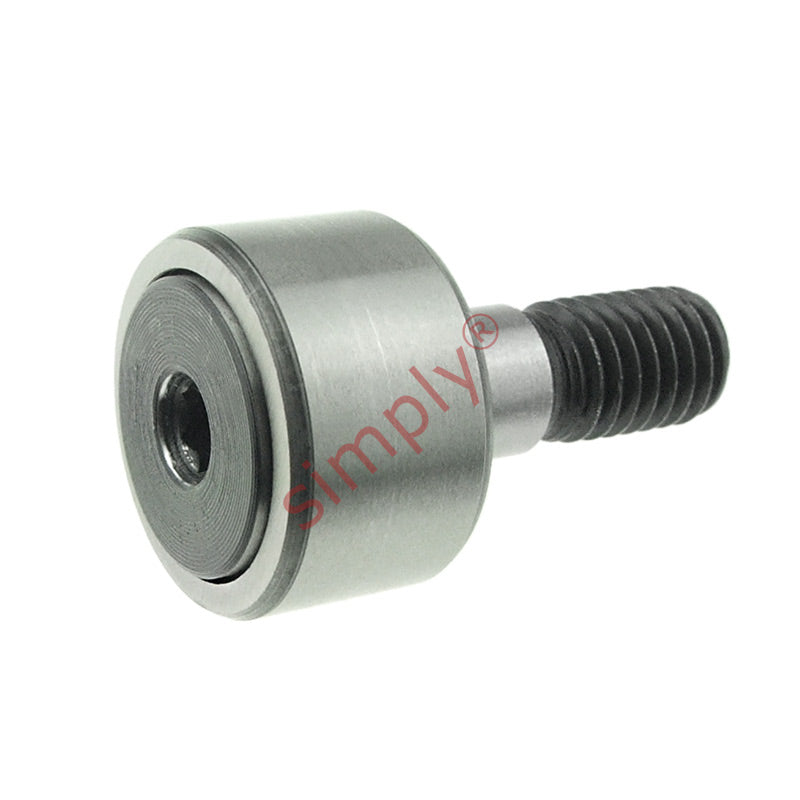

Budget KR19 Crowned Cam Follower 19x11x8 M8 Thread
Budget KR19 Crowned Cam Follower 19x11x8 M8 Thread
Regular price
€9,31
ex VAT
Regular price
Sale price
€9,31
ex VAT
In stock
Price Break
10+
€7,09
19+
€6,69
29+
€6,62
39+
€6,54
49+
€6,46
74+
€6,38
99+
€5,98
199+
€5,90
249+
€5,82
499+
€5,74
999+
€5,58
Description
Description
KR Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 19mm
- Width:
- 11mm
- Pitch:
- M8
Technical
Technical
| D | 19mm |
|---|---|
| C | 11mm |
| d (Stud Diameter) | 8mm |
| B | 32mm |
| B1 | 20mm |
| C1 | 0.6mm |
| d1 | 15mm |
| G | M8 |
| G1 | 10mm |
| M | 4mm |
| r min | 0.15mm |
| Dynamic load | 3470 N |
| Static load | 3800 N |
| Fatigue load limit Pu | 415 N |
| Radial dynamic load | 3800 N |
| Radial static load | 5500 N |
| Speed rating | 11000 rpm |
| Weight | 29 g |
