SKU: KR26PPA-EU

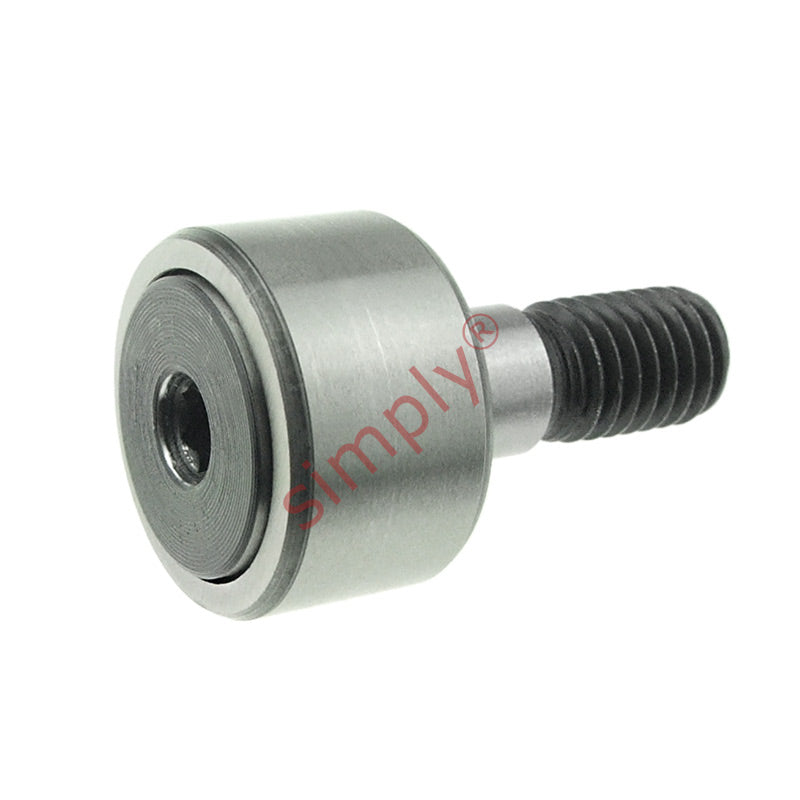

Budget KR26PPA Contact Sealed Crowned Cam Follower 26x12x10 M10x1 Thread
Budget KR26PPA Contact Sealed Crowned Cam Follower 26x12x10 M10x1 Thread
Regular price
€9,73
ex VAT
Regular price
Sale price
€9,73
ex VAT
In stock
Price Break
10+
€7,41
19+
€7,00
29+
€6,91
39+
€6,83
49+
€6,75
74+
€6,66
99+
€6,25
199+
€6,16
249+
€6,08
499+
€6,00
999+
€5,83
Description
Description
KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides. |
- Brand / Quality:
- EU Budget - Economy Quality
- Outside Diameter:
- 26mm
- Width:
- 12mm
- Pitch:
- M10x1
Technical
Technical
| D | 26mm |
|---|---|
| C | 12mm |
| d (Stud Diameter) | 10mm |
| B | 36mm |
| B1 | 23mm |
| C1 | 0.6mm |
| d1 | 17.5mm |
| G | M10x1 |
| G1 | 12mm |
| r min | 0.3mm |
| SW | 5mm |
| Dynamic load | 4840 N |
| Static load | 6000 N |
| Fatigue load limit Pu | 655 N |
| Radial dynamic load | 9300 N |
| Radial static load | 13200 N |
| Speed rating | 8000 rpm |
| Weight | 57 g |
