SKU: KR32PPA-MB-IKO

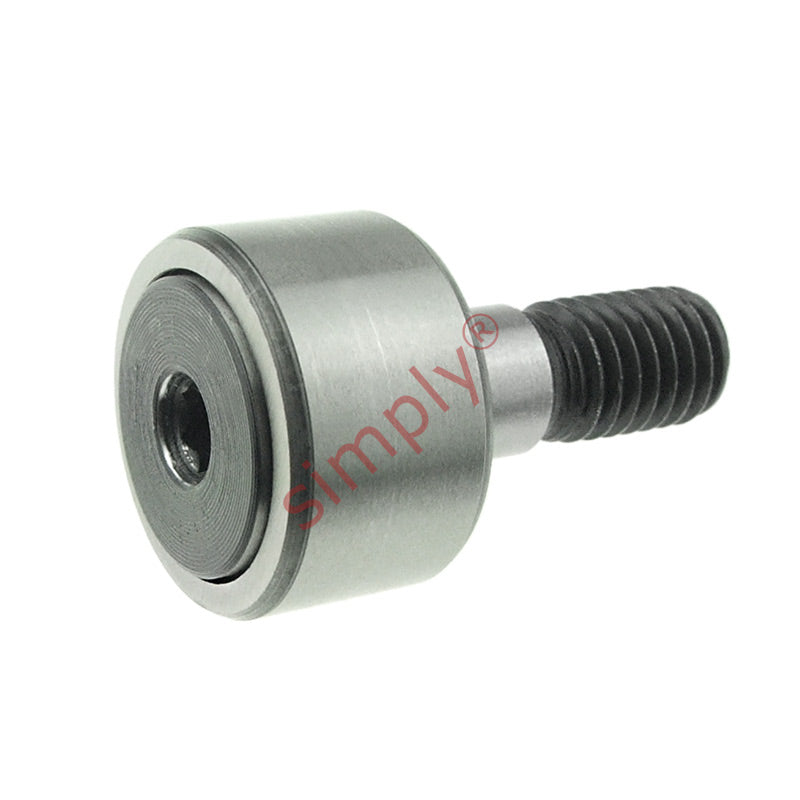

IKO KR32PPA Contact Sealed Crowned Cam Follower 32x14x12 M12x1.5 Thread

Name: IKO KR32PPA Contact Sealed Crowned Cam Follower 32x14x12 M12x1.5 Thread
Brand: IKO
SKU: KR32PPA-MB-IKO
Price: 41.43 EUR
Availability: InStock

€41,43 ex VAT

Sale Sold out

In stock

Price Break

10+ €35,10

19+ €33,68

29+ €32,97

39+ €31,91

49+ €31,20

74+ €29,42

99+ €24,82

199+ €0,00

249+ €0,00

499+ €0,00

999+ €0,00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.

Brand / Quality:: IKO - High Quality
Outside Diameter:: 32mm
Width:: 14mm
Pitch:: M12x1.5

Technical

D	32mm
C	14mm
d(Stud Diameter)	12mm
B	40mm
B1	25mm
B2	6mm
C1	0.6mm
d1	23mm
G	M12x1.5
G1	13mm
M1	3mm
r min	0.6mm
SW	6mm
Dynamic load	6710 N
Static load	8500 N
Fatigue load limit Pu	950 N
Radial dynamic load	10600 N
Radial static load	15000 N
Speed rating	5500 rpm
Weight	98 g
