SKU: KR35PPA-MB-IKO

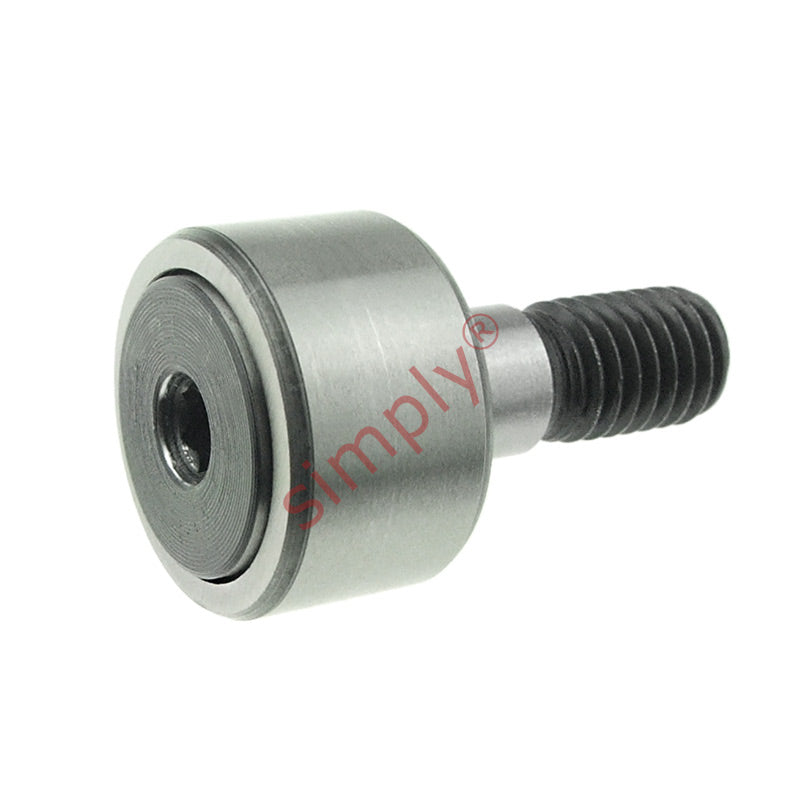

IKO KR35PPA Contact Sealed Crowned Cam Follower 35x18x16 M16x1.5 Thread

Name: IKO KR35PPA Contact Sealed Crowned Cam Follower 35x18x16 M16x1.5 Thread
Brand: IKO
SKU: KR35PPA-MB-IKO
Price: 46.59 EUR
Availability: InStock

€46,59 ex VAT

Sale Sold out

In stock

Price Break

10+ €39,47

19+ €37,88

29+ €37,08

39+ €35,88

49+ €35,09

74+ €33,09

99+ €27,91

199+ €0,00

249+ €0,00

499+ €0,00

999+ €0,00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.

Brand / Quality:: IKO - High Quality
Outside Diameter:: 35mm
Width:: 18mm
Pitch:: M16x1.5

Technical

D	35mm
C	18mm
d(Stud Diameter)	16mm
B	52mm
B1	32.5mm
B2	8mm
C1	0.8mm
d1	27.6mm
G	M16x1.5
G1	17mm
M1	3mm
r min	0.6mm
SW	8mm
Dynamic load	9520 N
Static load	13700 N
Fatigue load limit Pu	1560 N
Radial dynamic load	11400 N
Radial static load	16300 N
Speed rating	3600 rpm
Weight	160 g
