SKU: KR62PPA-EU

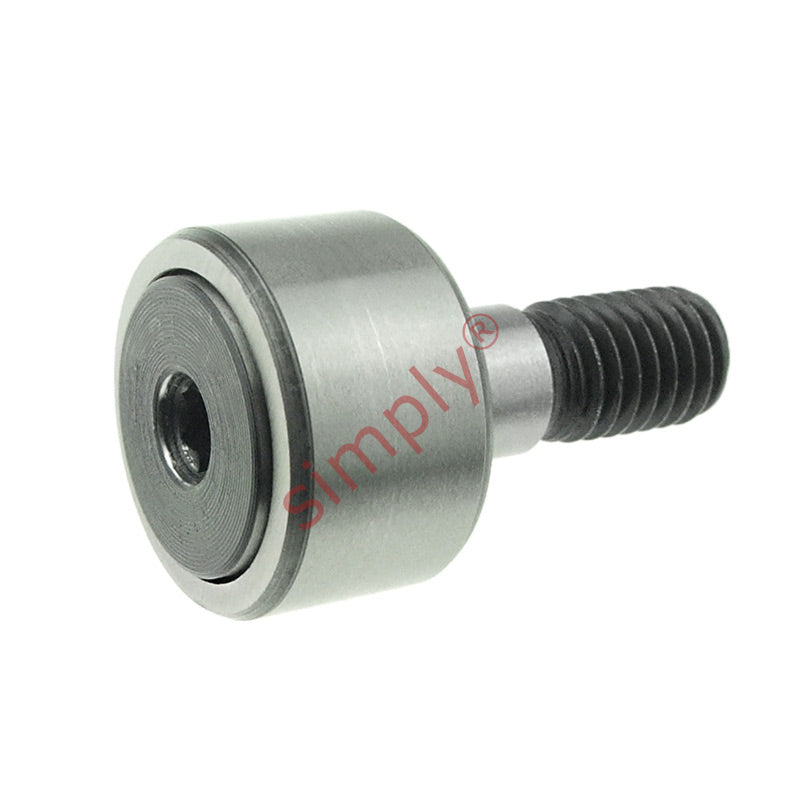

Budget KR62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread

Name: Budget KR62PPA Contact Sealed Crowned Cam Follower 62x29x24 M24x1.5 Thread
Brand: Gen
SKU: KR62PPA-EU
Price: 23.14 EUR
Availability: InStock

€23,14 ex VAT

Sale Sold out

In stock

Price Break

10+ €17,62

19+ €16,63

29+ €16,43

39+ €16,24

49+ €16,04

74+ €15,84

99+ €14,85

199+ €14,65

249+ €14,45

499+ €14,26

999+ €13,86

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

KR-PP Series Crowned Cam Followers: Manufactured with needle rollers permitting a thick outer ring allowing for heavy loads and shock to be supported, axial guidance is provided by a flange on the stud side and a pressed on side washer. These cam followers are supplied with contact seals on both sides.
Benefits: High load, shock resistant, contact sealed on both sides.

Brand / Quality:: EU Budget - Economy Quality
Outside Diameter:: 62mm
Width:: 29mm
Pitch:: M24x1.5

Technical

D	62mm
C	29mm
d (Stud Diameter)	24mm
B	80mm
B1	49.5mm
B2	11mm
C1	0.8mm
d1	44mm
G	M24x1.5
G1	25mm
M1	4mm
r min	1mm
SW	14mm
Dynamic load	24600 N
Static load	44000 N
Fatigue load limit Pu	5500 N
Radial dynamic load	58500 N
Radial static load	85000 N
Speed rating	1900 rpm
Weight	770 g
