SKU: LM501334SD-TIM
Timken LM501334SD Double Row Tapered Roller Bearing with Square Bore 32.6x49.5x73mm - Allow 2-3 Days
Timken LM501334SD Double Row Tapered Roller Bearing with Square Bore 32.6x49.5x73mm - Allow 2-3 Days
Regular price
€336,84
ex VAT
Regular price
Sale price
€336,84
ex VAT
Low stock
Price Break
10+
€285,36
19+
€273,83
29+
€268,06
39+
€259,42
49+
€253,65
74+
€239,24
99+
€201,77
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
|
Double Row Tapered Roller Bearing Plain Cup Type: Designed and manufactured in the UK by one of the worlds leading Precision Bearings companies. Double row bearings offer nearly twice the capacity of the equivalent single row bearing, and are therefore used in more heavily loaded applications. The plain outer race enables this bearing to be used in a 'floating' position ro permit thermal expansion. It can replace a single row plain cup type tapered roller bearing when additional load capacity is required. Benefits: Suitable in heavily loaded applications, high quality bearing materials. Note: The bore of the rear cone (marked 'B' track) is 0.002 to 0.004mm larger than the 'A' track cone bore. This reduces the level of tight fit to facilitate adjustment of the bearing. |
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 32.6mm
- Outside Diameter:
- 49.5mm
- Width:
- 73mm
- Seals / Shields:
- None

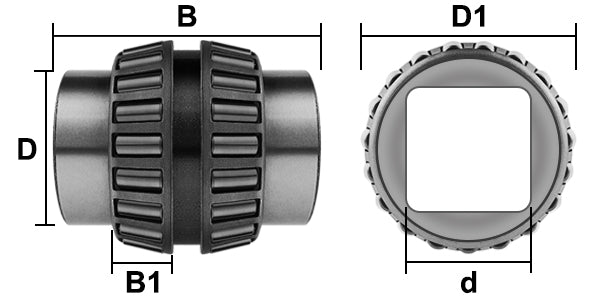

Technical
Technical
| d | 32.6mm |
|---|---|
| D | 49.5mm |
| B | 73mm |
| D1 | 67.3mm |
| B1 | 18.4mm |
| Weight | 0.700kg |
