SKU: M-ASFD203-NTN

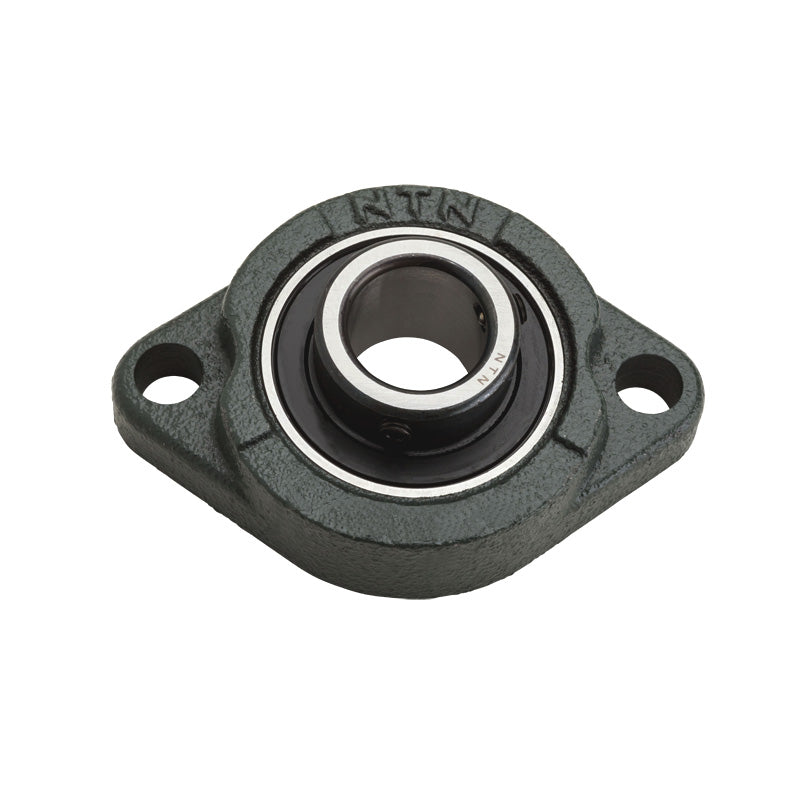

NTN M-ASFD203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
NTN M-ASFD203 Metric Two Bolt Oval Cast Iron Flange Housing with 17mm Bore Insert - Allow 2-3 Days
Regular price
€26,52
ex VAT
Regular price
Sale price
€26,52
ex VAT
In stock
Price Break
5+
€26,25
10+
€25,19
20+
€24,66
50+
€23,87
100+
€23,34
500+
€22,01
1000+
€18,56
Couldn't load pickup availability
Description
Description
ASFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- ASFD
- Bolt Hole Centres:
- 63mm
Technical
Technical
| Shaft diameter | 17mm |
|---|---|
| H | 81mm |
| J | 63mm |
| A<sub>2</sub> | 8.5mm |
| A | 15mm |
| N | 7mm |
| L | 59mm |
| A<sub>0</sub> | 24.5mm |
| B | 22mm |
| S | 6mm |
| Fixing bolt | M6 |
| Mass | 0.3 kg |
