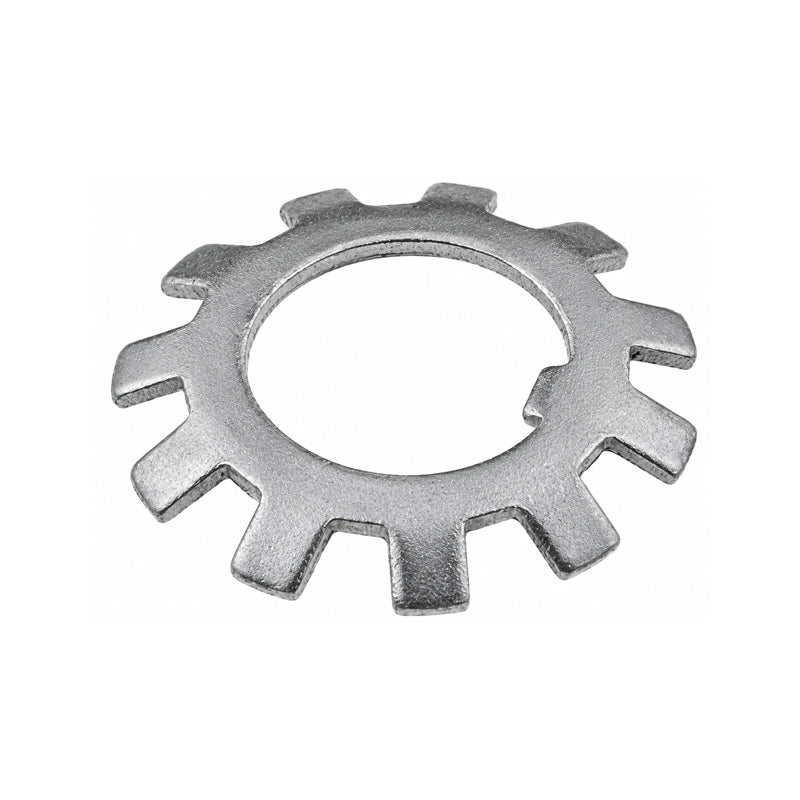

SKF MB6A Locking Tab Washer 30x49x1.8mm - Allow 2-3 Days

Name: SKF MB6A Locking Tab Washer 30x49x1.8mm - Allow 2-3 Days
Brand: Major Brand
SKU: MB6A-SKF
Price: 0.99 EUR
Availability: InStock

€0,99 ex VAT

Sale Sold out

In stock

Price Break

10+ €0,47

19+ €0,36

29+ €0,26

39+ €0,21

49+ €0,17

74+ €0,13

99+ €0,00

199+ €0,00

249+ €0,00

499+ €0,00

999+ €0,00

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. Lock nuts are used with lock nuts of the KM and KML series
Benefits: Efficient, secure, inexpensive, removable and re-useable

Brand / Quality:: Major Brand - High Quality
Thread Size:: 30mm

Technical

d	30mm
d1	38mm
d2	49mm
B	1.8mm
f	5mm
M	27.5mm
Weight	0.011 kg
