SKU: MFC4-RHP

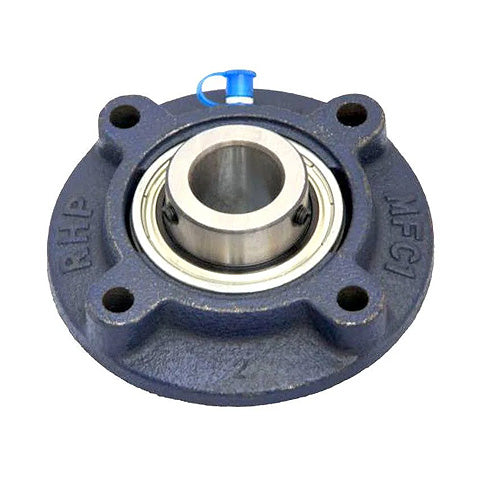

RHP MFC4 Four Bolt Round Cast Iron Flanged Bearing Unit and 4 inch Insert
RHP MFC4 Four Bolt Round Cast Iron Flanged Bearing Unit and 4 inch Insert
Regular price
€970,49
ex VAT
Regular price
Sale price
€970,49
ex VAT
In stock
Price Break
10+
€863,74
19+
€815,21
29+
€805,51
39+
€795,80
49+
€786,10
74+
€776,39
99+
€727,87
199+
€718,16
249+
€708,46
499+
€698,75
999+
€679,34
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Style:
- MFC
- Pitch Circle Diameter:
- 260.35mm = 10.25 (10-1/4) inch
Technical
Technical
| Bore | 4 inch |
|---|---|
| L | 11.748 inch |
| H | 9 inch |
| J | 10.25 inch |
| G | 0.75 inch |
| A1 | 3.5 inch |
| A4 | 1.811 inch |
| A5 | 0.5 inch |
| B | 4.625 inch |
| s | 1.94 inch |
| d1 | 5.135 inch |
| Dynamic load | 157000 N |
| Static load | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 17.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-4G+insonly">3095-4G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
