SKU: MFC60-RHP

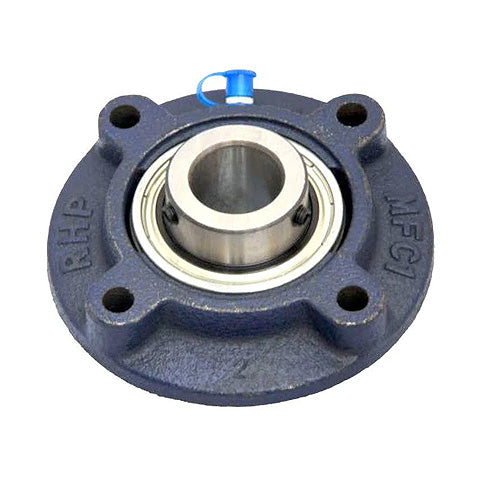

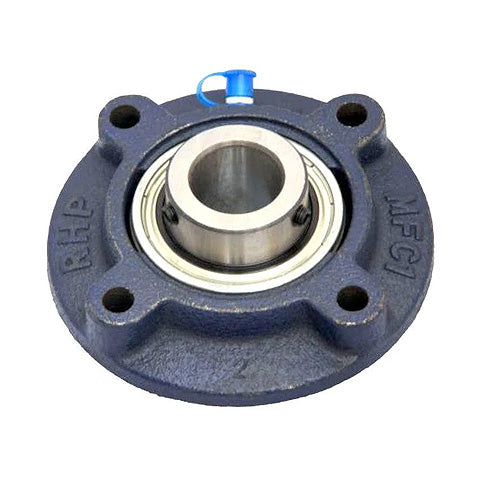

RHP MFC60 Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP MFC60 Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
Regular price
€243,17
ex VAT
Regular price
Sale price
€243,17
ex VAT
In stock
Price Break
10+
€185,20
20+
€174,79
30+
€172,71
40+
€170,63
50+
€168,55
75+
€166,47
100+
€156,07
200+
€153,98
250+
€151,90
500+
€149,82
1000+
€145,66
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- MFC
- Pitch Circle Diameter:
- 165.1mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 193.7mm |
| H | 139.7mm |
| J | 165.1mm |
| G | 12mm |
| A1 | 46.02mm |
| A4 | 15.9mm |
| A5 | 12.7mm |
| B | 74.63mm |
| s | 30.23mm |
| d1 | 87mm |
| Dynamic load | 61000 N |
| Static load | 45000 N |
| Rec max speed | 2450 rpm |
| Weight | 4.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1070-60G+insonly">1070-60G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
