SKU: MP-16-12F-DUN

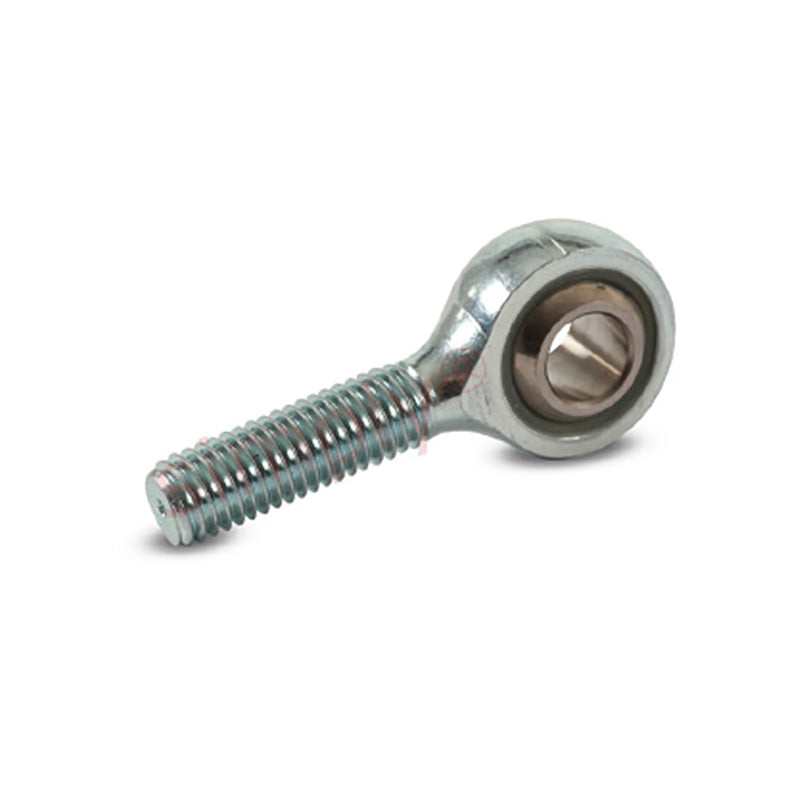

Dunlop MP-16-12F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1 BSF Thread - Allow 7-10 Days
Dunlop MP-16-12F Right Hand Imperial Steel / Nylon Lined Maintenance Free Plain Male Rod End 1 BSF Thread - Allow 7-10 Days
Regular price
€191,95
ex VAT
Regular price
Sale price
€191,95
ex VAT
In stock
Price Break
10+
€170,84
19+
€161,24
29+
€159,32
39+
€157,40
49+
€155,48
74+
€153,56
99+
€143,96
199+
€142,04
249+
€140,12
499+
€138,20
999+
€134,37
Couldn't load pickup availability
Description
Description
|
MP Series Nylon Lined Maintenance Free Male Rod Ends: The MP series are classed as maintenance free rod end bearings. They are self-lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C and SAE660. Operating Temperature Range: Operating temperature range -30c to +170c Benefits: Low friction, self-lubricating, good wear resistance, excellent moisture resistance . |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 1 BSF
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Liner Type:
- Nylon Lined
Technical
Technical
| Bore size | 3/4 inch |
|---|---|
| Thread | 1 BSF |
| W | 1.375 inch |
| H | 1 inch |
| D | 2.75 inch |
| L1 | 4.125 inch |
| L2 | 2.125 inch |
| O | 1.021 inch |
| Static load | 65200 N |
