SKU: MR445628-NTN

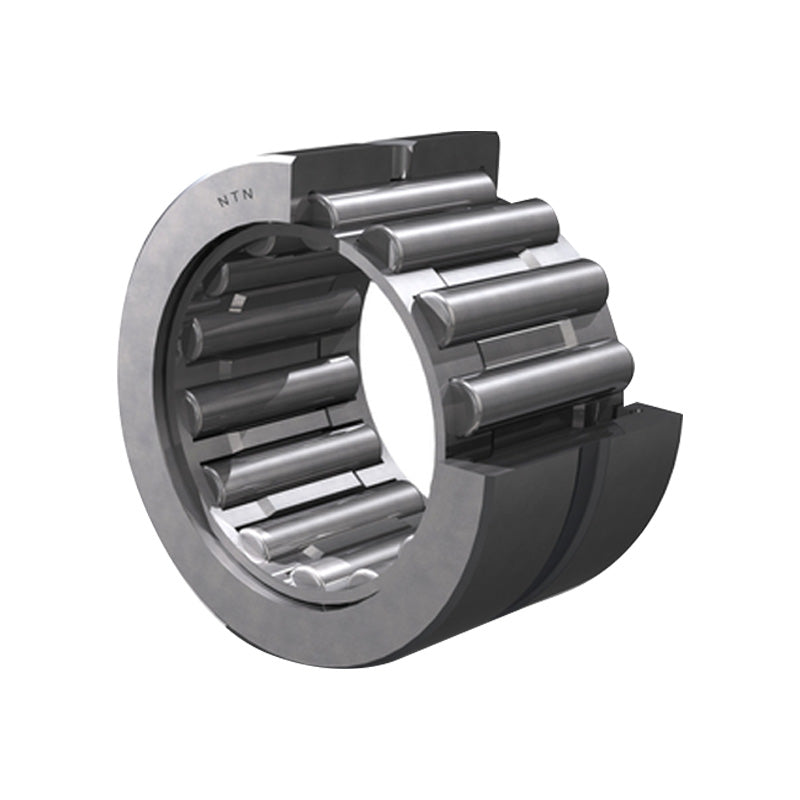

NTN MR445628 Machined Needle Roller Bearing no Shaft Sleeve 2-3/4x3-1/2x1-3/4 inch - Allow 2-3 Days

NTN MR445628 Machined Needle Roller Bearing no Shaft Sleeve 2-3/4x3-1/2x1-3/4 inch - Allow 2-3 Days
Regular price €90,58 ex VAT
Regular price Sale price €90,58 ex VAT
Sale Sold out

In stock

Price Break
3+ €76,73
4+ €73,63
9+ €72,08
19+ €69,76
49+ €68,21
99+ €64,33
499+ €54,26
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 69.85mm
D - Outside diameter 88.9mm
C - Width of bearing, drawn cup or outer ring 44.45mm
rs - Minimum fillet radius 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 4.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 107 kN
C0r - Static load rating 209 kN
N - Grease lubrication limit speed 3700 tr/min
N - Oil lubrication limit speed 5500 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 81mm
ras max - Maximum shaft & housing fillet radius 2mm
