SKU: MR486028-NTN

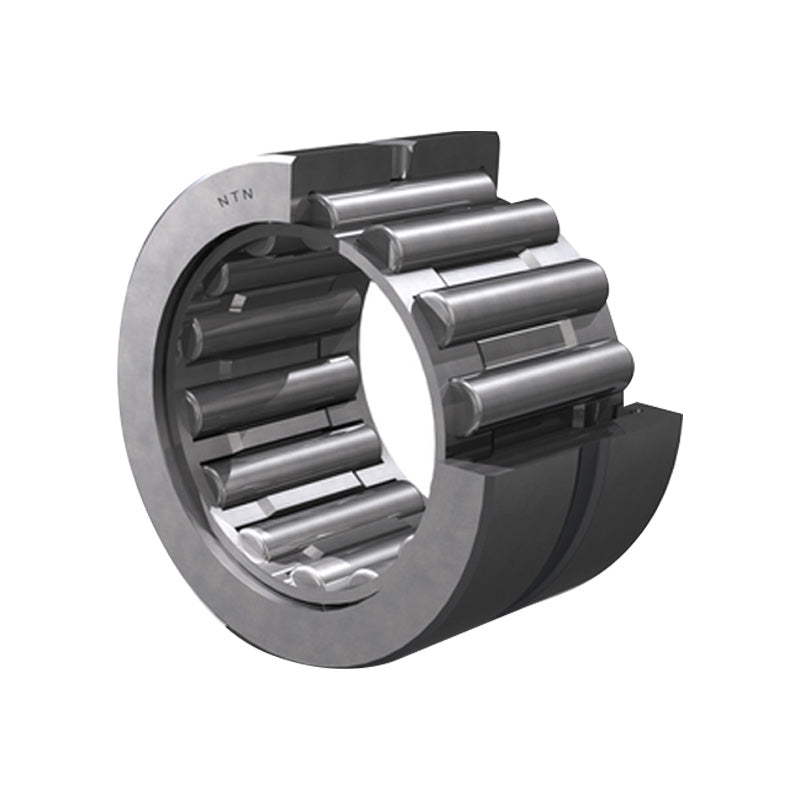

NTN MR486028 Machined Needle Roller Bearing no Shaft Sleeve 73.2x95.25x44.45mm - Allow 2-3 Days

NTN MR486028 Machined Needle Roller Bearing no Shaft Sleeve 73.2x95.25x44.45mm - Allow 2-3 Days
Regular price €155,33 ex VAT
Regular price Sale price €155,33 ex VAT
Sale Sold out

In stock

Price Break
3+ €131,59
4+ €126,27
9+ €123,62
19+ €119,63
49+ €116,97
99+ €110,32
499+ €93,04
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 73.2mm
D - Outside diameter 95.25mm
C - Width of bearing, drawn cup or outer ring 44.45mm
rs - Minimum fillet radius 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 112 kN
C0r - Static load rating 227 kN
N - Grease lubrication limit speed 3300 tr/min
N - Oil lubrication limit speed 5000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 97mm
ras max - Maximum shaft & housing fillet radius 2mm
